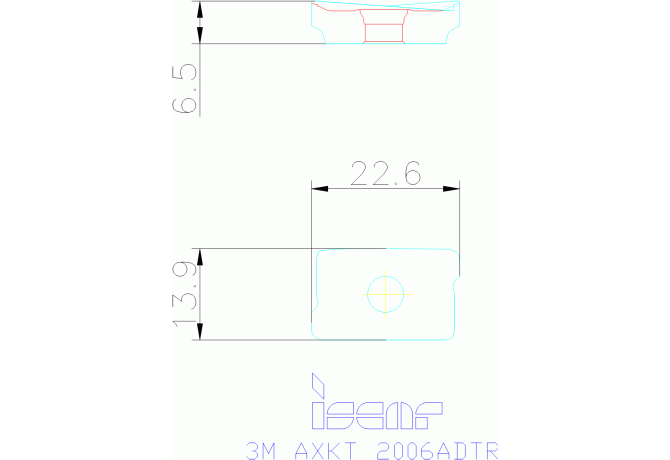

3M AXKT 2006ADTR IC908

Артикул: 5603520

В наличии

В корзину

Описание

Характеристики

AS Clearance angle wiper edge

15 Degree

BS Wiper edge length

2.4 mm

CB Chip breaker face count

1 - With chip breaker one-side

CECC Cutting edge condition code

T - Chamfered

COATN Coating / Покрытие

TiAlN

COMPC Company code

IS - Iscar

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

2/1/2012

DIN

AX2006AD3R

EPSR Insert included angle

90 Degree

FamilyProducts

3M AXKT 2006ADTR IC908

GRD2ND Standard designation of the grade 2nd application

HC-M30

GRD3RD Standard designation of the grade 3rd application

HC-K40

GRDMFG Grade manufacturers designation

IC908

GRDPRIO Standard designation of the grade main application

HC-P30

IC Inscribed circle diameter

13.9 mm

ID Technical product number

5603520

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-04 - Rectangular insert

KRINS Cutting edge angle major

45 Degree

L Cutting edge length

22.6 mm

LE Cutting edge effective length

10 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

AX2006AD3R

Name Identifying order number

3M AXKT 2006ADTR IC908

S Insert thickness

6.5 mm

S1 Insert thickness total

6.5 mm

TCINS Tolerance class insert

K - Cold formed

W1 Insert width

13.9 mm

Working process

No working processes available
