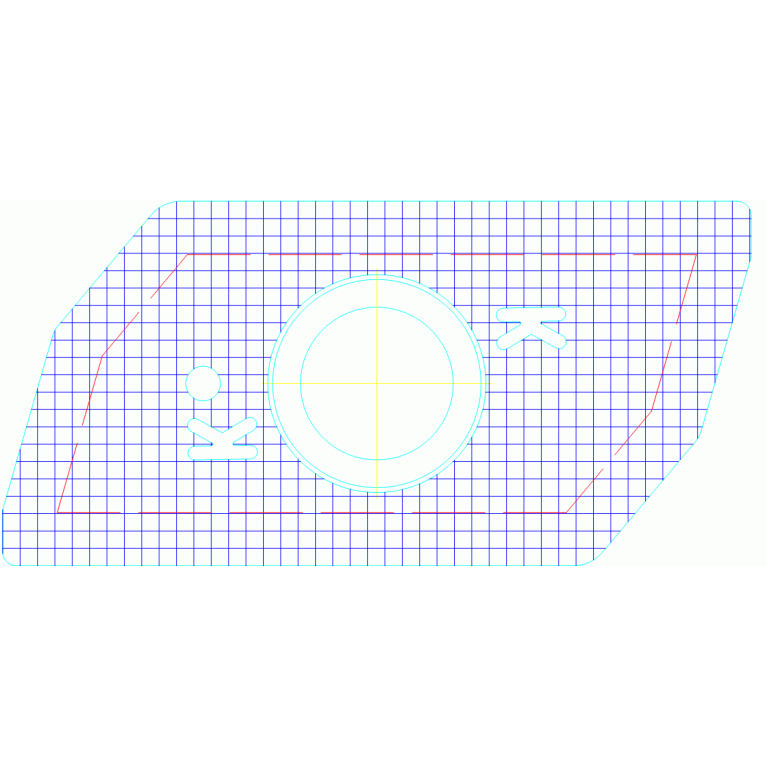

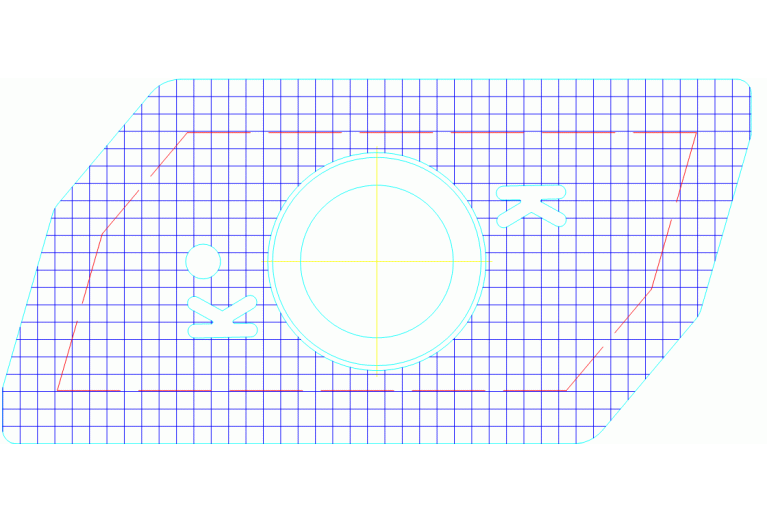

ZDGT150404R-K85 WMG40
ZDGT150404R-K85 WMG40
Артикул:
5004876
В наличии
Характеристики
AN Clearance angle major
15 Degree
BS Wiper edge length
1.2 mm
CBMD Chip breaker manufacturers designation
K85
CECC Cutting edge condition code
F - Sharpedged
COMPC Company code
W - Walter
CSP Coolant supply property
0 - Without coolant supply
D1 Fixing hole diameter
4.4 mm
Delivery state valid from
12/1/2023
DIN
W-ZD1504$$3RB$$$$
FamilyProducts
Positive rhombic ZDGT
GRDMFG Grade manufacturers designation
WMG40
ID Technical product number
5004876
IFS Insert mounting style code
3 - Counter bore for screws with taper angle from 40° to 60°
IH Insert hand
R - Right
Interface codes
J6 / J441
ISISO ISO property
0
ISO
WR$$ZD1504$$3RB$$$$
ISYC Subclass
201-05 - Parallelogram-shaped insert
L Cutting edge length
16.2 mm
LOC-03 ISO
WR$$ZD1504$$3RB$$$$
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
W-ZD1504$$3RB$$$$
Name Identifying order number
ZDGT150404R-K85 WMG40
NOI Insert index count
2
RE Corner radius
0.4 mm
S Insert thickness
4.76 mm
S1 Insert thickness total
4.76 mm
STDDES Standard designation
ZDGT150404R
TCE Tipped cutting edge code
S
TCINS Tolerance class insert
G
W1 Insert width
10.5 mm
Working process
FPL - Face milling
WT Weight of item
0.007 kg
