ZCMX09T308ER-B HTi20T

Артикул: ZCMX09T308ER-B HTi20T

В наличии

В корзину

Описание

Характеристики

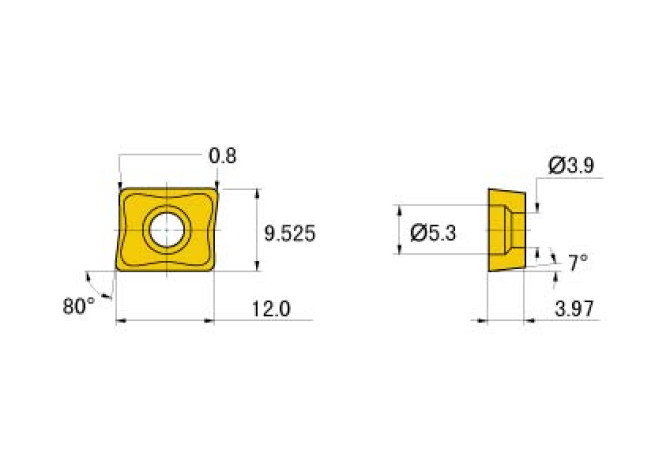

AN Clearance angle major

7 Degree

ANN Clearance angle minor

0 Degree

AS Clearance angle wiper edge

0 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

E - Rounded

CHW Corner chamfer width

0 mm

COMPC Company code

MI - Mitsubishi Materials

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

3.9 mm

Delivery state valid from

4/1/2022

DIN

MI-ZCMX09T308ER-B

EPSR Insert included angle

80 Degree

FamilyProducts

INSERT, MILLING, UNCOATED

GAN Insert rake angle

0 Degree

GRDMFG Grade manufacturers designation

HTi20T

GRDPRIO Standard designation of the grade main application

HW-K20

IC Inscribed circle diameter

9.52 mm

IFS Insert mounting style code

7 - Prismatic clamping, concave

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-05 - Parallelogram-shaped insert

KCH Corner chamfer angle

0 Degree

L Cutting edge length

12 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

MI-ZCMX09T308ER-B

Name Identifying order number

ZCMX09T308ER-B HTi20T

RE Corner radius

0.8 mm

S Insert thickness

3.97 mm

S1 Insert thickness total

3.97 mm

STDDES Standard designation

ZCMX09T308ER

TCINS Tolerance class insert

W1 Insert width

9.52 mm

Working process

F - Milling,FEC - Square shoulder milling,FNU - Groove milling,FPL - Face milling,FPR - Profile milling,FZI - Circular milling
