XPMT150512R-DW AH120

Артикул: XPMT150512R-DW AH120

В наличии

В корзину

Описание

Характеристики

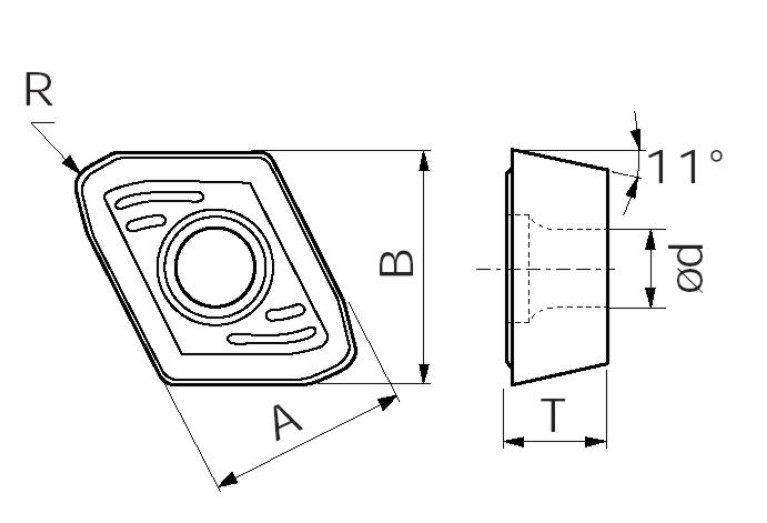

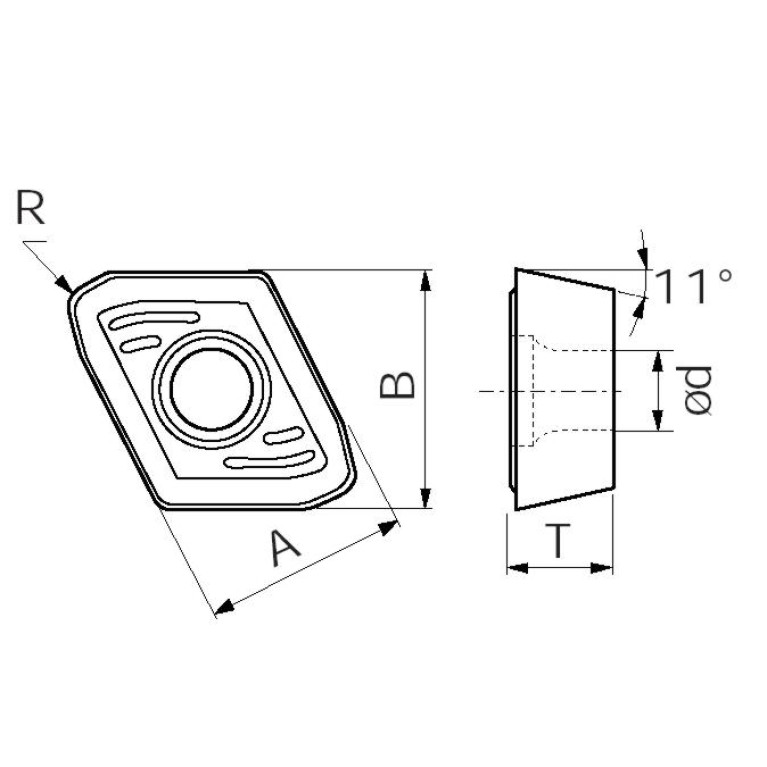

AN Clearance angle major

11 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

TiAlN-PVD

COMPC Company code

TT - Tungaloy

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

5.5 mm

Delivery state valid from

10/26/2012

DIN

XP1505123R

FamilyProducts

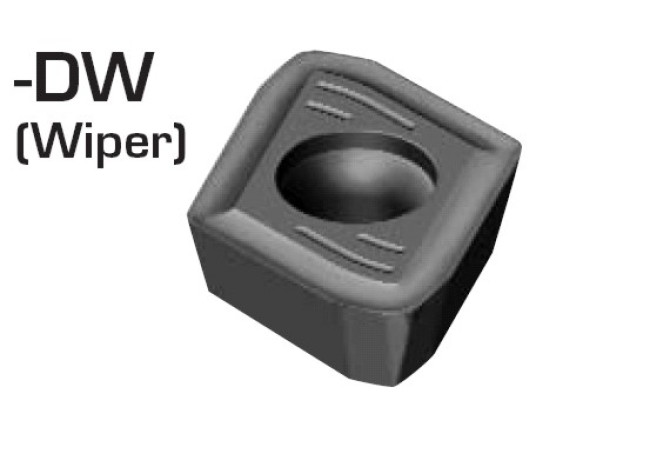

Insert for drilling, DW-chipbreaker for aluminium

GRD2ND Standard designation of the grade 2nd application

HC-P40

GRD3RD Standard designation of the grade 3rd application

HC-K25

GRDMFG Grade manufacturers designation

AH120

GRDPRIO Standard designation of the grade main application

HC-P30

IC Inscribed circle diameter

15 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-05 - Parallelogram-shaped insert

L Cutting edge length

15 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

XP1505123R

Materials

P,M

Name Identifying order number

XPMT150512R-DW AH120

RE Corner radius

1.2 mm

S Insert thickness

5.56 mm

S1 Insert thickness total

5.56 mm

STDDES Standard designation

XPMT150512R

TCINS Tolerance class insert

W1 Insert width

16.1 mm

Working process

BVB - Drilling,DDA - External turning,DDI - Internal turning
