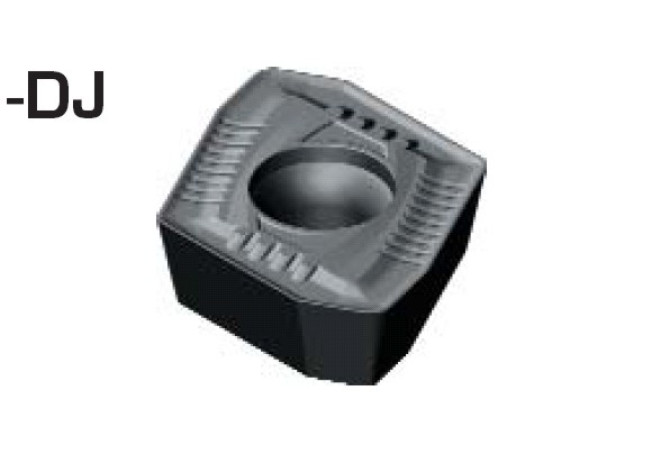

XPMT110412R-DJ T1115

Артикул: 6863853

В наличии

В корзину

Описание

Характеристики

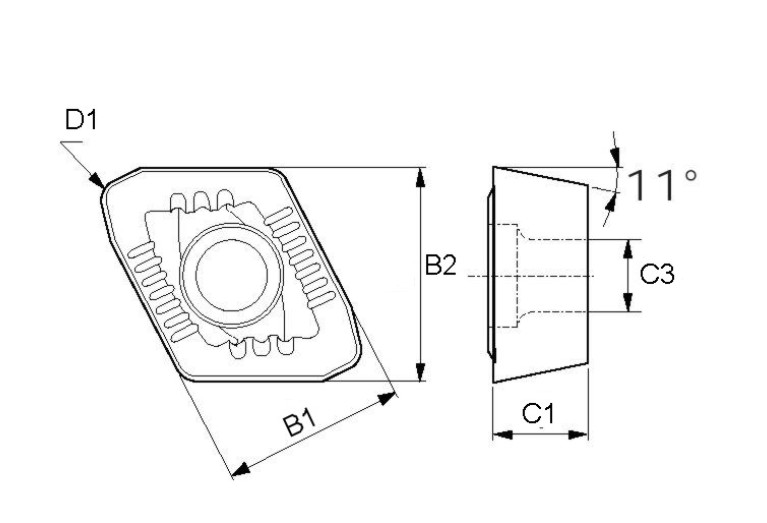

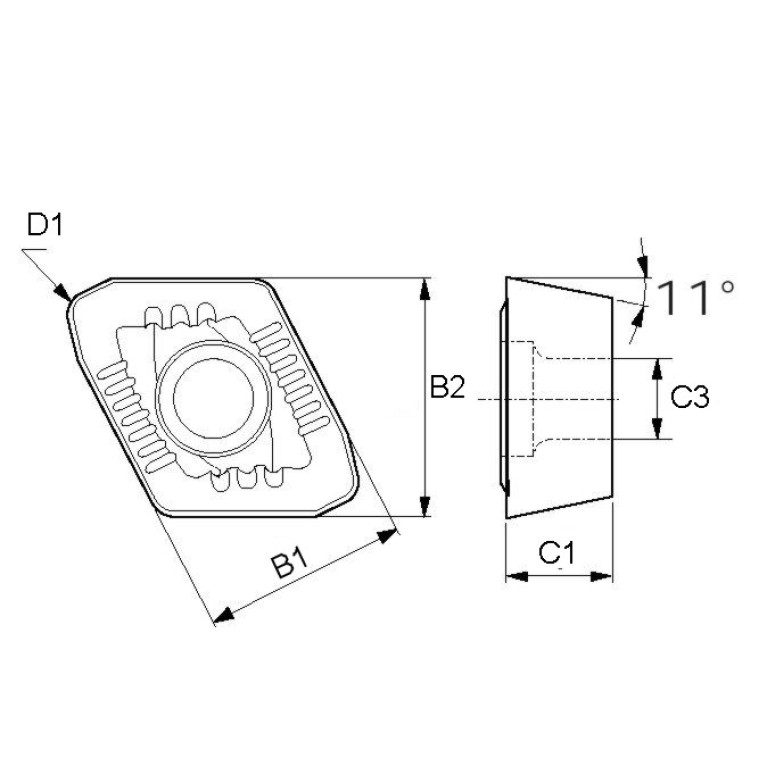

AN Clearance angle major

11 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

COMPC Company code

TT - Tungaloy

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.4 mm

Delivery state valid from

10/26/2012

DIN

XP1104123R

FamilyProducts

Insert for drilling, DJ-chipbreaker for cast iron

GRDMFG Grade manufacturers designation

T1115

IC Inscribed circle diameter

11.2 mm

ID Technical product number

6863853

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-05 - Parallelogram-shaped insert

L Cutting edge length

11.2 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

XP1104123R

Name Identifying order number

XPMT110412R-DJ T1115

RE Corner radius

1.2 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

XPMT110412R

TCINS Tolerance class insert

W1 Insert width

12.5 mm

Working process

BVB - Drilling,DDA - External turning,DDI - Internal turning
