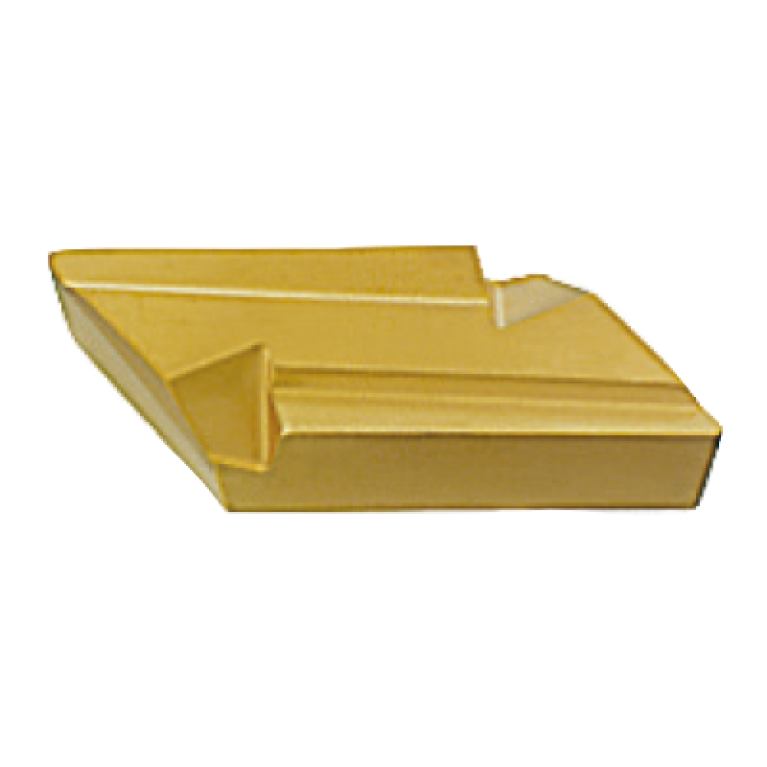

KNUX160405R-M1 UE6020

Артикул: 252953

В наличии

В корзину

Описание

Характеристики

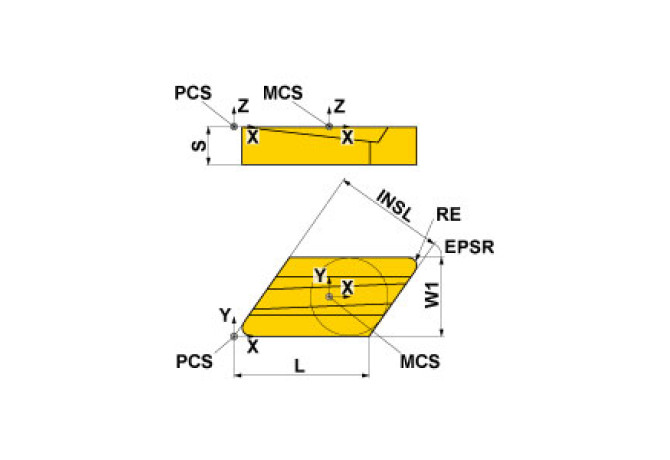

AN Clearance angle major

0 Degree

BN Face land width

0.2 mm

CBMD Chip breaker manufacturers designation

R-M1

COATN Coating / Покрытие

TiN-Al2O3

COMPC Company code

MI - Mitsubishi Materials

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

4/1/2022

DIN

KN1604057R

EPSR Insert included angle

55 Degree

FamilyProducts

turning inserts KNUX-R-M1

GAN Insert rake angle

0 Degree

GB Face land angle

0 Degree

GRD2ND Standard designation of the grade 2nd application

HC-P30

GRDMFG Grade manufacturers designation

UE6020

GRDPRIO Standard designation of the grade main application

HC-P10

IC Inscribed circle diameter

9.525 mm

ID Technical product number

252953

IFS Insert mounting style code

7 - Prismatic clamping, concave

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-05 - Parallelogram-shaped insert

L Cutting edge length

16.15 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

KN1604057R

Materials

Name Identifying order number

KNUX160405R-M1 UE6020

NameAnsi Identifying order number inch alternative

KNUX160405RM1 UE6020

RE Corner radius

0.5 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

KNUX160405R-M1

STDDESAnsi Standard designation ANSI

KNUX160405RM1

TCINS Tolerance class insert

U - Not treated

W1 Insert width

9.52 mm

Working process

DDA - External turning,DDI - Internal turning
