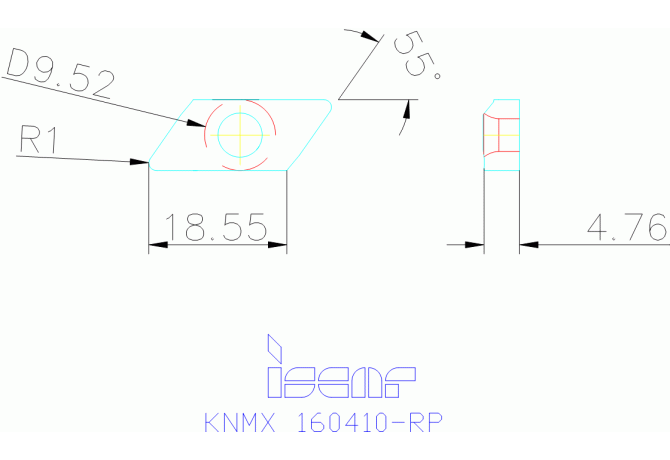

KNMX 160410-RP IC8250
KNMX 160410-RP IC8250
Артикул:
5550346
В наличии
Характеристики
AN Clearance angle major
0 Degree
CBMD Chip breaker manufacturers designation
RP
COATN Coating
TiN-TiCN
COMPC Company code
IS - Iscar
CSP Coolant supply property
0 - Without coolant supply
Delivery state valid from
12/1/2014
DIN
KN1604 3N
EPSR Insert included angle
55 Degree
FamilyProducts
KNMX 160410-RP IC8250
GAN Insert rake angle
13 Degree
GRD2ND Standard designation of the grade 2nd application
HC-P01
GRD3RD Standard designation of the grade 3rd application
HC-K15
GRDMFG Grade manufacturers designation
IC8250
GRDPRIO Standard designation of the grade main application
HC-P35
IC Inscribed circle diameter
9.52 mm
ID Technical product number
5550346
IFS Insert mounting style code
3 - Counter bore for screws with taper angle from 40° to 60°
IH Insert hand
N - Neutral
Interface codes
J6 /
ISISO ISO property
0
ISYC Subclass
201-05 - Parallelogram-shaped insert
L Cutting edge length
19.72 mm
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
KN1604 3N
Materials
P
Name Identifying order number
KNMX 160410-RP IC8250
RE Corner radius
1 mm
S Insert thickness
4.76 mm
S1 Insert thickness total
4.76 mm
TCINS Tolerance class insert
M
W1 Insert width
9.52 mm
Working process
No working processes available
