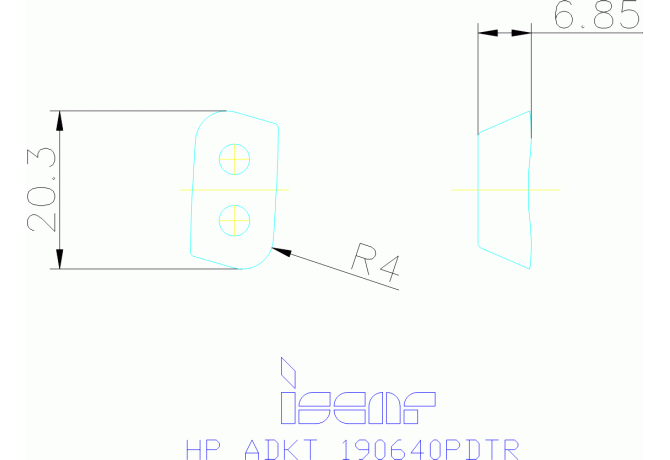

HP ADKT 190640PDTR IC328

Артикул: 5604931

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

15 Degree

AS Clearance angle wiper edge

15 Degree

BS Wiper edge length

0.5 mm

CECC Cutting edge condition code

T - Chamfered

COATN Coating / Покрытие

TiCN

COMPC Company code

IS - Iscar

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

2/2/2018

FamilyProducts

Milling Inserts with 19 mm Cutting Edge for General Use

GRDMFG Grade manufacturers designation

IC328

ID Technical product number

5604931

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

INSL Insert length

20.4 mm

Interface codes

/ J441

ISISO ISO property

ISO

IS$$202527264646980

ISYC Subclass

201-05 - Parallelogram-shaped insert

KRINS Cutting edge angle major

90 Degree

L Cutting edge length

20.4 mm

LE Cutting edge effective length

19.2 mm

LOC-03 ISO

IS$$202527264646980

LOC-03-Connection-codes

J6 / J441 - connection code machine end

Name Identifying order number

HP ADKT 190640PDTR IC328

NOI Insert index count

RE Corner radius

4 mm

S Insert thickness

6.85 mm

Working process

No working processes available

WT Weight of item

0.01 kg
