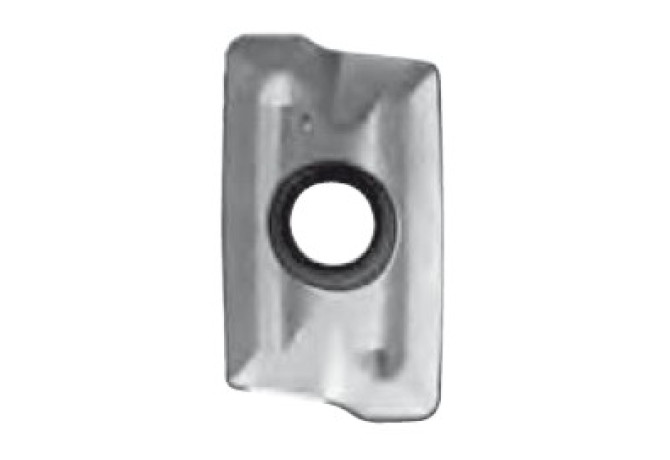

BDMT170440ER-R70-HP883
BDMT170440ER-R70-HP883
Артикул:
BDMT170440ER-R70-HP883
В наличии
Характеристики
AN Clearance angle major
15 Degree
CB Chip breaker face count
1 - With chip breaker one-side
CBMD Chip breaker manufacturers designation
R70
CECC Cutting edge condition code
E - Rounded
COMPC Company code
MP - Mapal
CSP Coolant supply property
0 - Without coolant supply
Delivery state valid from
8/1/2013
DIN
BD1704 3R
EPSR Insert included angle
82 Degree
FamilyProducts
Radial indexable insert BDMT, 2 cutting edges
GRDMFG Grade manufacturers designation
HP883
IC Inscribed circle diameter
9.6 mm
IFS Insert mounting style code
3 - Counter bore for screws with taper angle from 40° to 60°
IH Insert hand
R - Right
Interface codes
J6 /
ISISO ISO property
0
ISYC Subclass
201-05 - Parallelogram-shaped insert
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
BD1704 3R
Materials
P,M
Name Identifying order number
BDMT170440ER-R70-HP883
RE Corner radius
4 mm
S Insert thickness
4.76 mm
S1 Insert thickness total
4.76 mm
STDDES Standard designation
BDMT170440ER
TCINS Tolerance class insert
M
Working process
F - Milling,FEC - Square shoulder milling
