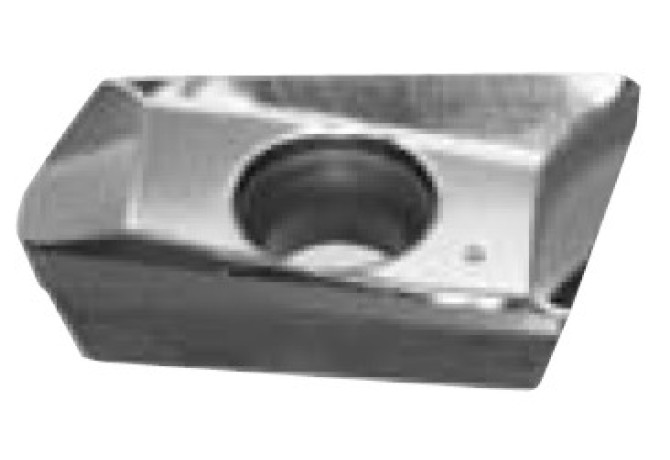

ASGT170504PDFR-AJ DS1100

ASGT170504PDFR-AJ DS1100 ASGT170504PDFR-AJ DS1100 ASGT170504PDFR-AJ DS1100

ASGT170504PDFR-AJ DS1100

Tungaloy
Артикул: 6852496
В наличии
В корзину
Описание
Характеристики

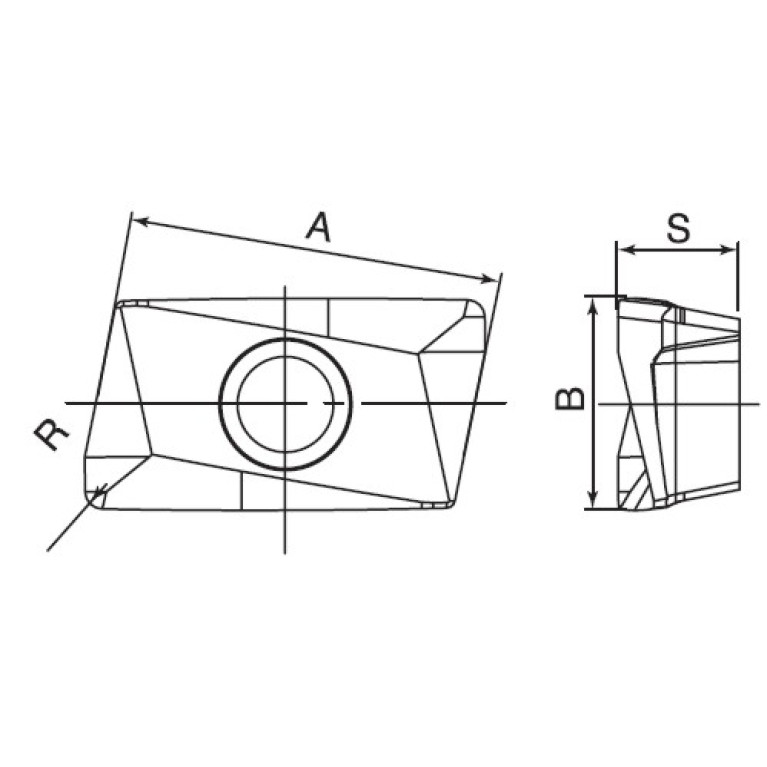

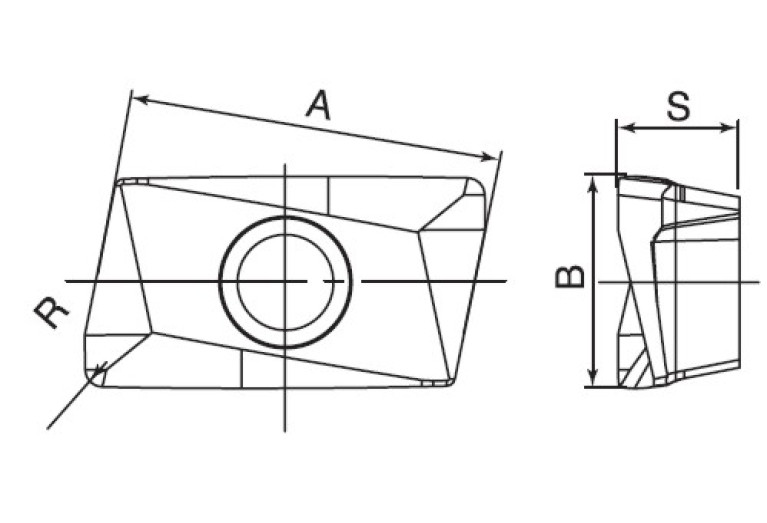

AS Clearance angle wiper edge
15 Degree
CB Chip breaker face count
1 - With chip breaker one-side
CBMD Chip breaker manufacturers designation
AJ
CECC Cutting edge condition code
F - Sharpedged
COMPC Company code
TT - Tungaloy
CSP Coolant supply property
0 - Without coolant supply
Delivery state valid from
10/26/2012
DIN
AS1705PD3R
EPSR Insert included angle
85 Degree
FamilyProducts
indexable insert for milling of aluminum
GRDMFG Grade manufacturers designation
DS1100
IC Inscribed circle diameter
9.8 mm
ID Technical product number
6852496
IFS Insert mounting style code
3 - Counter bore for screws with taper angle from 40° to 60°
IH Insert hand
R - Right
Interface codes
J6 /
ISISO ISO property
0
ISYC Subclass
201-05 - Parallelogram-shaped insert
KRINS Cutting edge angle major
90 Degree
L Cutting edge length
16.9 mm
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
AS1705PD3R
Name Identifying order number
ASGT170504PDFR-AJ DS1100
RE Corner radius
0.4 mm
S Insert thickness
5.6 mm
S1 Insert thickness total
5.6 mm
STDDES Standard designation
ASGT170504PDFR
TCINS Tolerance class insert
G
W1 Insert width
9.8 mm
Working process
No working processes available
