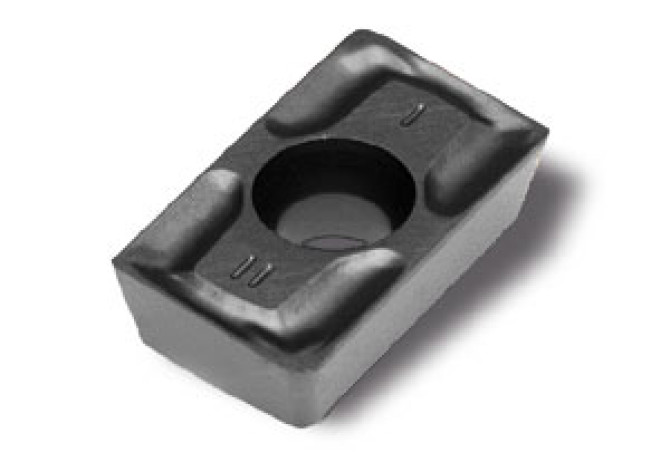

APFT 1604PDSR-29 SR226+

Артикул: APFT 1604PDSR-29 SR226+

В наличии

В корзину

Описание

Характеристики

ANN Clearance angle minor

11 Degree

AS Clearance angle wiper edge

15 Degree

BS Wiper edge length

1.2 mm

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

S - Chamfered and rounded

COMPC Company code

CE - Ceratizit

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.4 mm

DIN

AP1604PD3R

EPSR Insert included angle

85 Degree

FamilyProducts

carbide milling insert

GRD2ND Standard designation of the grade 2nd application

HC-K20

GRD3RD Standard designation of the grade 3rd application

HC-M25

GRDMFG Grade manufacturers designation

SR226+

GRDPRIO Standard designation of the grade main application

HC-P25

IC Inscribed circle diameter

9.52 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-05 - Parallelogram-shaped insert

KRINS Cutting edge angle major

90 Degree

L Cutting edge length

16 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

AP1604PD3R

Name Identifying order number

APFT 1604PDSR-29 SR226+

RE Corner radius

0.8 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

APFT1604PDSR

TCINS Tolerance class insert

W1 Insert width

9.52 mm

Working process

No working processes available

Главный задний угол (AN) / Clearance angle major (AN)

11 Degree
