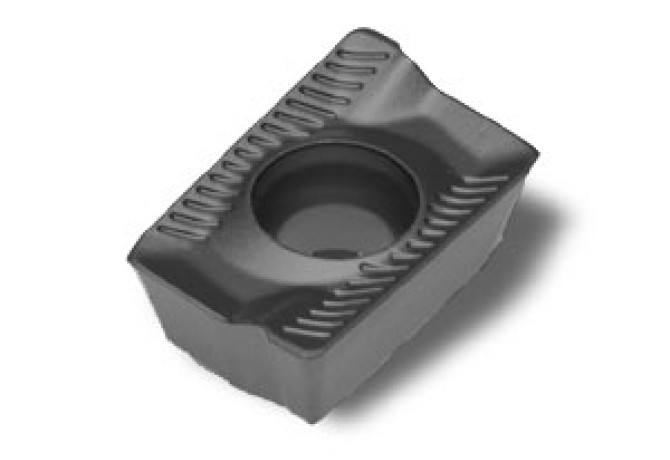

ADKT 1505PDSR-29 SR226+

Артикул: ADKT 1505PDSR-29 SR226+

В наличии

В корзину

Описание

Характеристики

ANN Clearance angle minor

14 Degree

AS Clearance angle wiper edge

15 Degree

BS Wiper edge length

1.25 mm

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

S - Chamfered and rounded

COMPC Company code

CE - Ceratizit

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.4 mm

DIN

AD1505PD3R

EPSR Insert included angle

85 Degree

FamilyProducts

carbide milling insert

GRD2ND Standard designation of the grade 2nd application

HC-K20

GRD3RD Standard designation of the grade 3rd application

HC-M25

GRDMFG Grade manufacturers designation

SR226+

GRDPRIO Standard designation of the grade main application

HC-P25

IC Inscribed circle diameter

9.57 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-05 - Parallelogram-shaped insert

KRINS Cutting edge angle major

90 Degree

L Cutting edge length

15.2 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

AD1505PD3R

Name Identifying order number

ADKT 1505PDSR-29 SR226+

S Insert thickness

5.65 mm

S1 Insert thickness total

5.65 mm

STDDES Standard designation

ADKT1505PDSR

TCINS Tolerance class insert

K - Cold formed

W1 Insert width

9.57 mm

Working process

No working processes available

Главный задний угол (AN) / Clearance angle major (AN)

12 Degree
