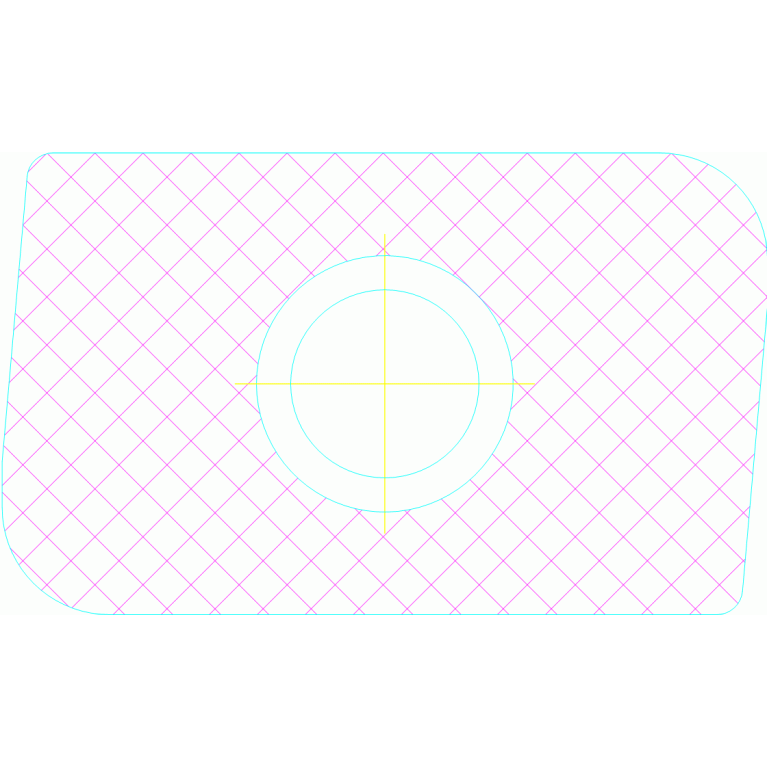

ADHT160625R-G88 WXN15
ADHT160625R-G88 WXN15
Артикул:
5157718
В наличии
Характеристики
AN Clearance angle major
15 Degree
ANN Clearance angle minor
20 Degree
BS Wiper edge length
1.2 mm
CBMD Chip breaker manufacturers designation
G88
COMPC Company code
W - Walter
D1 Fixing hole diameter
4.4 mm
Delivery state valid from
12/1/2023
DIN
W-MA1606ZE
EPSR Insert included angle
85 Degree
FamilyProducts
Positive rhombic ADHT
GRDMFG Grade manufacturers designation
WXN15
IC Inscribed circle diameter
10.8 mm
ID Technical product number
5157718
IFS Insert mounting style code
3 - Counter bore for screws with taper angle from 40° to 60°
IH Insert hand
R - Right
Interface codes
J6 / J441
ISISO ISO property
0
ISO
WR$$MA1606253RBZE25
ISYC Subclass
201-05 - Parallelogram-shaped insert
L Cutting edge length
17.5 mm
LE Cutting edge effective length
15.5 mm
LOC-03 ISO
WR$$MA1606253RBZE25
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
W-MA1606ZE
Name Identifying order number
ADHT160625R-G88 WXN15
RE Corner radius
2.5 mm
S Insert thickness
6.15 mm
S1 Insert thickness total
6.15 mm
TCE Tipped cutting edge code
S
W1 Insert width
10.8 mm
Working process
No working processes available
WT Weight of item
0.007 kg
