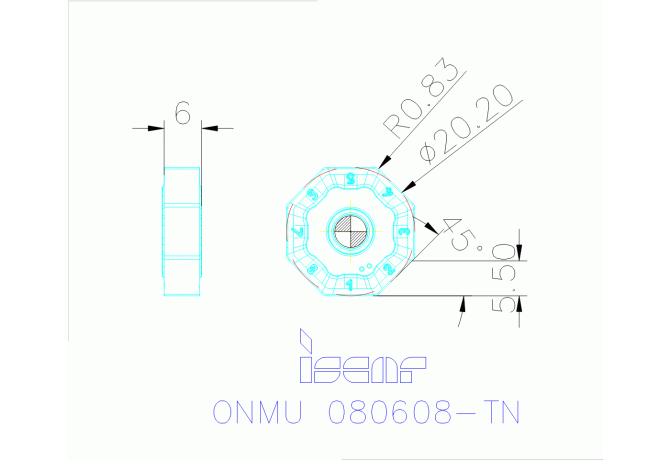

ONMU 080608-TN IC4100

Артикул: 5605432

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

T - Chamfered

COATN Coating

TiCN+Al2O3+TiN

COMPC Company code

IS - Iscar

DIN

IS-406855382858652

EPSR Insert included angle

135 Degree

FamilyProducts

Octagonal Double-Sided Face Milling Inserts for Cast Iron and Rough Applications

GRDMFG Grade manufacturers designation

IC4100

IC Inscribed circle diameter

20.2 mm

ID Technical product number

5605432

IFS Insert mounting style code

4 - Counter bore for screws with taper angle from 70° to 90°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

IS$$406855382858652

ISYC Subclass

201-09 - Octogonal insert

LOC-03 ISO

IS$$406855382858652

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IS-406855382858652

Name Identifying order number

ONMU 080608-TN IC4100

RE Corner radius

0.8 mm

S Insert thickness

6 mm

Working process

No working processes available

WT Weight of item

0.02 kg
