Главная Каталог продукции Toolunited 16 201-09 - Octogonal insert ONHU 080600-N-PL IC910

ONHU 080600-N-PL IC910

Артикул: 5604873

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

T - Chamfered

COATN Coating / Покрытие

AlTiN

COMPC Company code

IS - Iscar

DIN

IS-396983489656218

EPSR Insert included angle

135 Degree

FamilyProducts

Octagonal Inserts with Sharp Edge and Positive Land for Cast Iron

GRDMFG Grade manufacturers designation

IC910

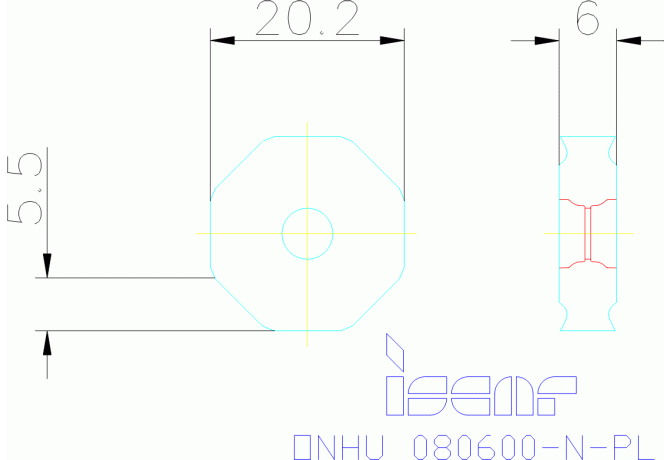

IC Inscribed circle diameter

20.2 mm

ID Technical product number

5604873

IFS Insert mounting style code

4 - Counter bore for screws with taper angle from 70° to 90°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

IS$$396983489656218

ISYC Subclass

201-09 - Octogonal insert

LOC-03 ISO

IS$$396983489656218

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IS-396983489656218

Name Identifying order number

ONHU 080600-N-PL IC910

RE Corner radius

0.4 mm

S Insert thickness

6 mm

Working process

No working processes available

WT Weight of item

0.02 kg
