Главная Каталог продукции Toolunited 16 201-09 - Octogonal insert OFMW 07T3-AETN IC908

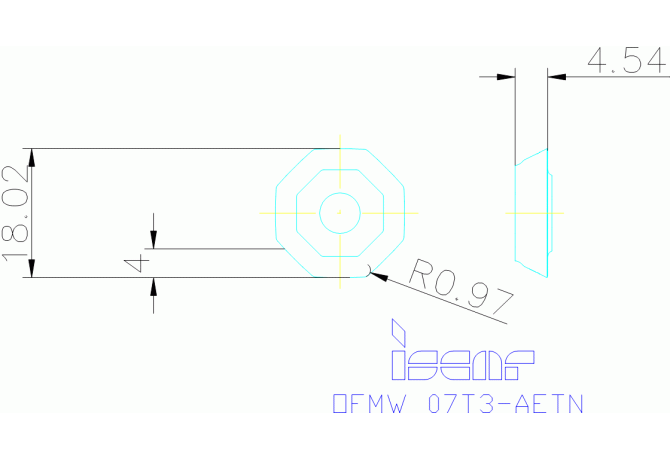

OFMW 07T3-AETN IC908

Артикул: 5603734

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

25 Degree

AS Clearance angle wiper edge

20 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating

TiAlN

COMPC Company code

IS - Iscar

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

2/1/2012

DIN

OF07T3 3N

EPSR Insert included angle

135 Degree

FamilyProducts

OFMW 07T3-AETN IC908

GRD2ND Standard designation of the grade 2nd application

HC-M30

GRD3RD Standard designation of the grade 3rd application

HC-K40

GRDMFG Grade manufacturers designation

IC908

GRDPRIO Standard designation of the grade main application

HC-P30

IC Inscribed circle diameter

18.22 mm

ID Technical product number

5603734

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-09 - Octogonal insert

KRINS Cutting edge angle major

45 Degree

LE Cutting edge effective length

4 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

OF07T3 3N

Name Identifying order number

OFMW 07T3-AETN IC908

NOI Insert index count

RE Corner radius

1 mm

S Insert thickness

4.41 mm

S1 Insert thickness total

4.54 mm

TCINS Tolerance class insert

Working process

No working processes available
