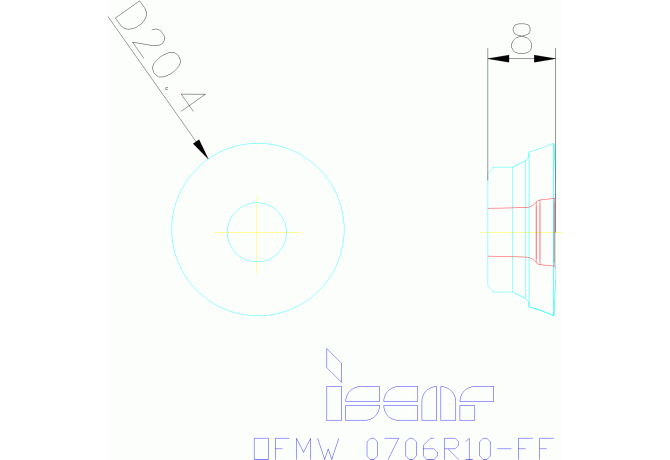

OFMW 0706R10-FF IC908

Артикул: 5604301

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

25 Degree

CECC Cutting edge condition code

T - Chamfered

COATN Coating

TiAlN

COMPC Company code

IS - Iscar

DIN

IS-193322775090460

EPSR Insert included angle

135 Degree

FamilyProducts

Inserts with 8 FEEDMILL Large Radii Segmented Cutting Edges for Fast Feed on HELIOCTO Cutters

GRDMFG Grade manufacturers designation

IC908

IC Inscribed circle diameter

20.4 mm

ID Technical product number

5604301

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 / J441

ISISO ISO property

ISO

IS$$193322775090460

ISYC Subclass

201-09 - Octogonal insert

L Cutting edge length

7 mm

LOC-03 ISO

IS$$193322775090460

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IS-193322775090460

Name Identifying order number

OFMW 0706R10-FF IC908

S Insert thickness

8 mm

Working process

No working processes available

WT Weight of item

0.02 kg
