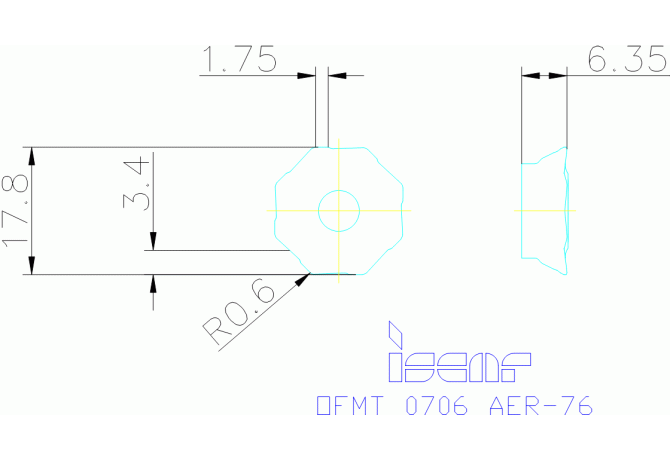

OFMT 0706 AER-76 IC4050
OFMT 0706 AER-76 IC4050
Артикул:
5604328
В наличии
Характеристики
AN Clearance angle major
25 Degree
AS Clearance angle wiper edge
20 Degree
BS Wiper edge length
1.75 mm
CB Chip breaker face count
1 - With chip breaker one-side
CBMD Chip breaker manufacturers designation
76
COMPC Company code
IS - Iscar
CSP Coolant supply property
0 - Without coolant supply
Delivery state valid from
2/1/2012
DIN
OF0706 3N
EPSR Insert included angle
135 Degree
FamilyProducts
OFMT 0706 AER-76 IC4050
GRDMFG Grade manufacturers designation
IC4050
IC Inscribed circle diameter
17.8 mm
ID Technical product number
5604328
IFS Insert mounting style code
3 - Counter bore for screws with taper angle from 40° to 60°
IH Insert hand
R - Right
Interface codes
J6 /
ISISO ISO property
0
ISYC Subclass
201-09 - Octogonal insert
KRINS Cutting edge angle major
45 Degree
LE Cutting edge effective length
3.4 mm
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
OF0706 3N
Name Identifying order number
OFMT 0706 AER-76 IC4050
NOI Insert index count
8
RE Corner radius
0.6 mm
S Insert thickness
4.55 mm
S1 Insert thickness total
4.55 mm
TCINS Tolerance class insert
M
Working process
No working processes available
