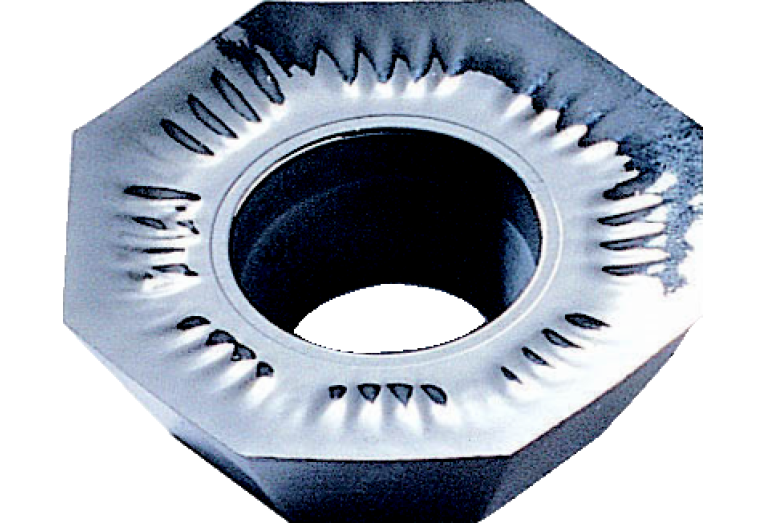

Главная Каталог продукции Toolunited 16 201-09 - Octogonal insert OFKT05T3FN-MA H01

OFKT05T3FN-MA H01

Артикул: 1-03-000831

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

25 Degree

AS Clearance angle wiper edge

0 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

ohne

COMPC Company code

KOR - Korloy

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.4 mm

Delivery state valid from

6/4/2014

DIN

OF05T3 3N

EPSR Insert included angle

135 Degree

FamilyProducts

Milling inserts

GRDMFG Grade manufacturers designation

H01

GRDPRIO Standard designation of the grade main application

Carbide

IC Inscribed circle diameter

12.7 mm

ID Technical product number

1-03-000831

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-09 - Octogonal insert

KRINS Cutting edge angle major

85 Degree

L Cutting edge length

5.2 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

OF05T3 3N

Name Identifying order number

OFKT05T3FN-MA H01

RE Corner radius

0.5 mm

S Insert thickness

3.97 mm

S1 Insert thickness total

3.97 mm

STDDES Standard designation

OFKT05T3FN

TCINS Tolerance class insert

K - Cold formed

Working process

F - Milling
