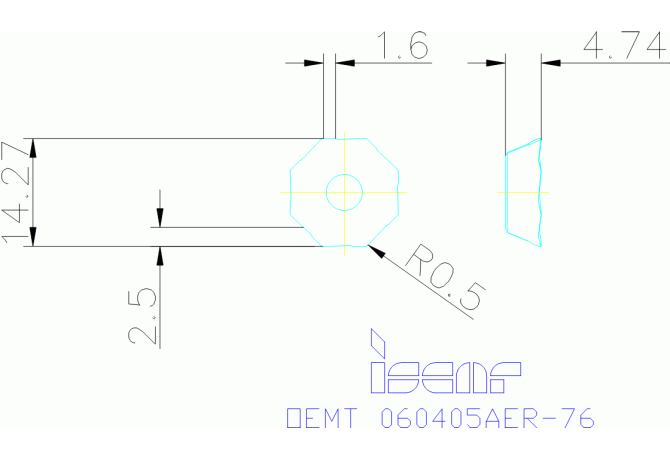

OEMT 060405AER-76 IC908

Артикул: 5603151

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

20 Degree

AS Clearance angle wiper edge

20 Degree

BS Wiper edge length

1.6 mm

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

TiAlN

COMPC Company code

IS - Iscar

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

2/1/2012

DIN

OE0604053R

EPSR Insert included angle

135 Degree

FamilyProducts

OEMT 060405AER-76 IC908

GRD2ND Standard designation of the grade 2nd application

HC-M30

GRD3RD Standard designation of the grade 3rd application

HC-K40

GRDMFG Grade manufacturers designation

IC908

GRDPRIO Standard designation of the grade main application

HC-P30

IC Inscribed circle diameter

14.27 mm

ID Technical product number

5603151

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-09 - Octogonal insert

KRINS Cutting edge angle major

45 Degree

LE Cutting edge effective length

2.5 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

OE0604053R

Name Identifying order number

OEMT 060405AER-76 IC908

NOI Insert index count

RE Corner radius

0.5 mm

S Insert thickness

4.74 mm

S1 Insert thickness total

4.74 mm

STDDES Standard designation

OEMT060405

TCINS Tolerance class insert

Working process

FPL - Face milling
