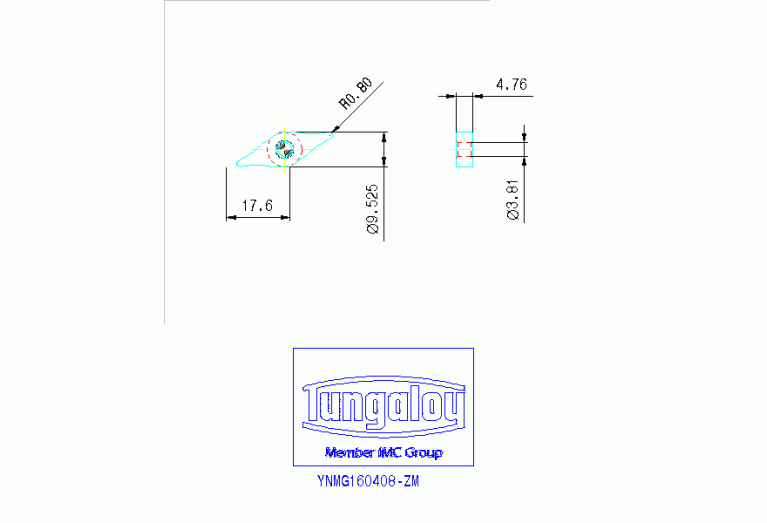

YNMG160408-ZM T9135
YNMG160408-ZM T9135
Артикул:
6985210
В наличии
Характеристики
AN Clearance angle major
0 Degree
CB Chip breaker face count
2 - With chip breaker on both sides
CBMD Chip breaker manufacturers designation
ZM
CECC Cutting edge condition code
F - Sharpedged
COATN Coating
MT-CVD
COMPC Company code
TT - Tungaloy
CSP Coolant supply property
0 - Without coolant supply
D1 Fixing hole diameter
3.81 mm
Delivery state valid from
4/1/2013
DIN
VN1604 2N
EPSR Insert included angle
25 Degree
FamilyProducts
indexable insert for profiling, 25° positive
GAN Insert rake angle
7 Degree
GRD2ND Standard designation of the grade 2nd application
HC-P40
GRDMFG Grade manufacturers designation
T9135
GRDPRIO Standard designation of the grade main application
HC-P30
IC Inscribed circle diameter
9.525 mm
ID Technical product number
6985210
IFS Insert mounting style code
2 - With cylindrical bore
IH Insert hand
N - Neutral
Interface codes
J6 /
ISISO ISO property
0
ISYC Subclass
201-00 - Regular Insert unspecified
L Cutting edge length
16 mm
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
VN1604 2N
Materials
P
Name Identifying order number
YNMG160408-ZM T9135
NameAnsi Identifying order number inch alternative
YNMG 332 ZM T9135
RE Corner radius
0.8 mm
S Insert thickness
4.76 mm
S1 Insert thickness total
4.76 mm
STDDES Standard designation
YNMG160408
TCINS Tolerance class insert
M
W1 Insert width
9.525 mm
Working process
DDA - External turning
