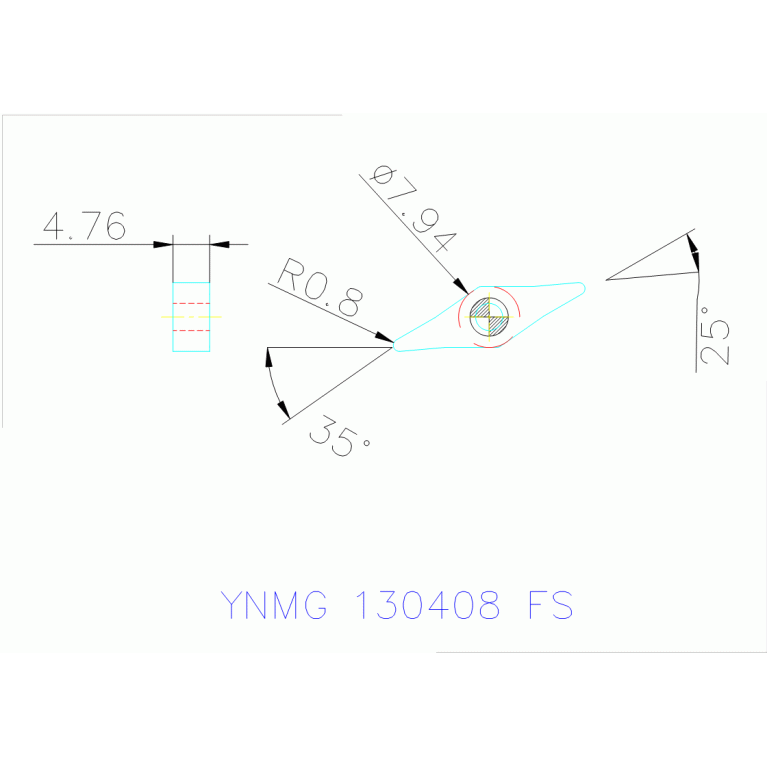

YNMG 130408 FS TT8115

Артикул: 6158064

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

0 - Without chip breaker

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

TiCN+Al2O3+TiN

COMPC Company code

IL - Ingersoll

Delivery state

LL - Stock limited

DIN

IL-WSP-3960

EPSR Insert included angle

25 Degree

FamilyProducts

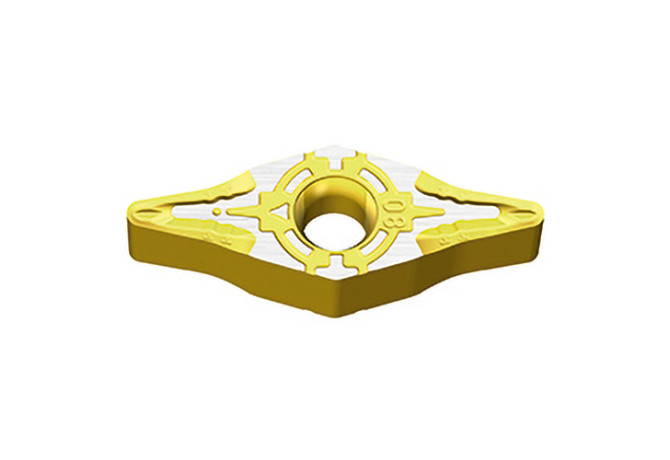

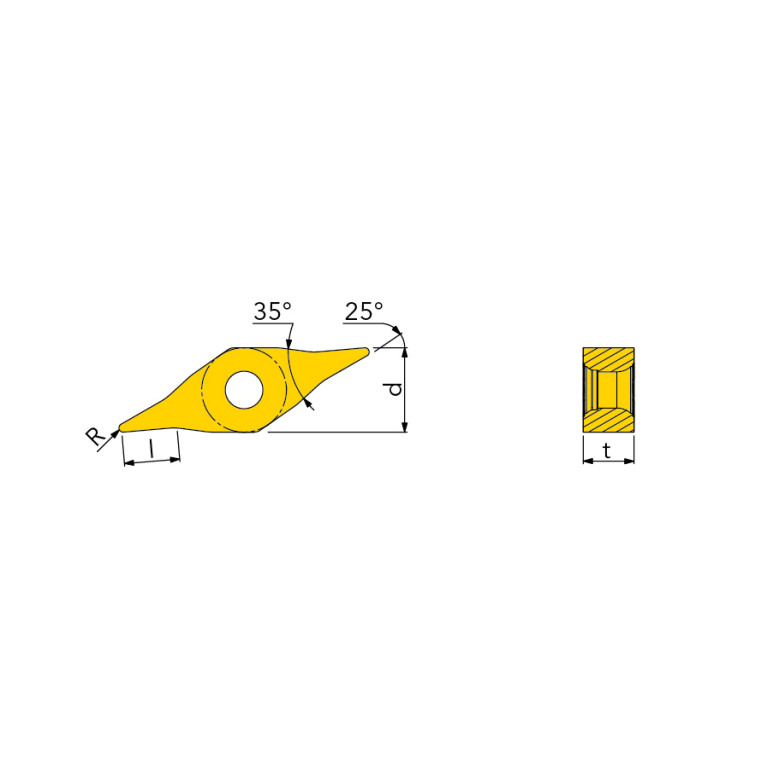

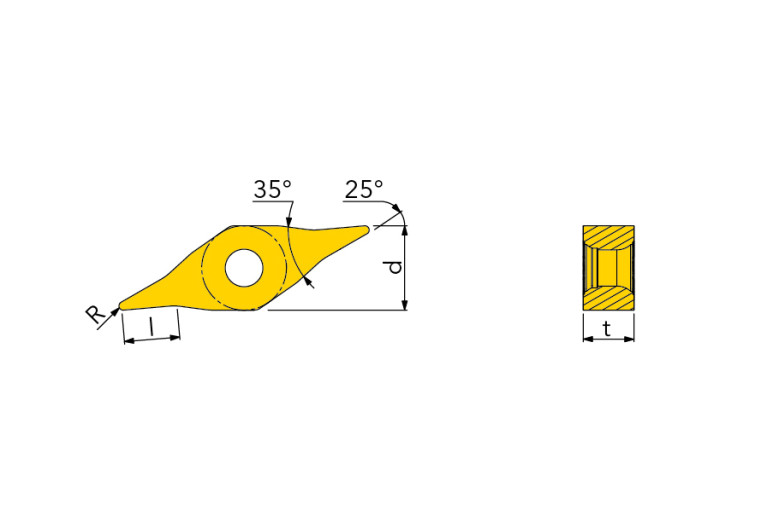

insert, Negative 25° rhombic ground inserts for super finishing

GRDMFG Grade manufacturers designation

TT8115

GRDPRIO Standard designation of the grade main application

P05-P20

IC Inscribed circle diameter

7.94 mm

ID Technical product number

6158064

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-00 - Regular Insert unspecified

L Cutting edge length

4.2 mm

LE Cutting edge effective length

1 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IL-WSP-3960

Name Identifying order number

YNMG 130408 FS TT8115

RE Corner radius

0.8 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

TCINS Tolerance class insert

Working process

No working processes available
