XEEW13T3AGER-W T250A

Артикул: XEEW13T3AGER-W T250A

В наличии

В корзину

Описание

Характеристики

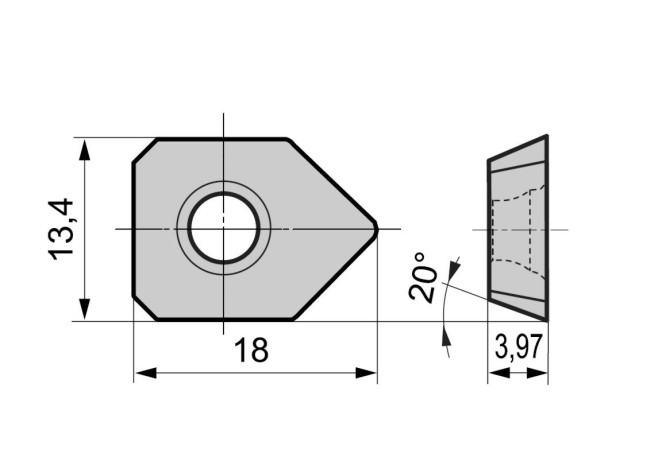

AN Clearance angle major

20 Degree

AS Clearance angle wiper edge

20 Degree

CB Chip breaker face count

0 - Without chip breaker

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

E - Rounded

COMPC Company code

SU - Sumitomo

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

2/24/2021

DIN

XE13T3AG3N

FamilyProducts

insert for milling

GRD2ND Standard designation of the grade 2nd application

HT-P15

GRD3RD Standard designation of the grade 3rd application

HT-M15

GRDMFG Grade manufacturers designation

T250A

GRDPRIO Standard designation of the grade main application

HT-P20

IC Inscribed circle diameter

13.4 mm

ID Technical product number

XEEW13T3AGER-W T250A

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-00 - Regular Insert unspecified

KCH Corner chamfer angle

45 Degree

KRINS Cutting edge angle major

45 Degree

L Cutting edge length

18 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

XE13T3AG3N

Name Identifying order number

XEEW13T3AGER-W T250A

S Insert thickness

3.97 mm

S1 Insert thickness total

3.97 mm

STDDES Standard designation

XEEW13T3AGER

TCINS Tolerance class insert

W1 Insert width

13.4 mm

Working process

No working processes available
