Главная Каталог продукции Toolunited 16 201-00 - Regular Insert unspecified XCMT 05R-200020GV TT8020

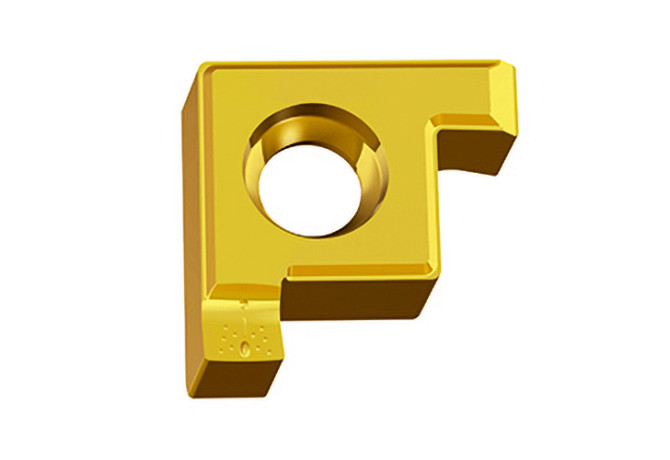

XCMT 05R-200020GV TT8020

Артикул: 5580669

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating / Покрытие

TiCN

COMPC Company code

IL - Ingersoll

Delivery state

LL - Stock limited

DIN

IL-WSP-3745

FamilyProducts

insert, T-CAP Insert

GRD2ND Standard designation of the grade 2nd application

M30-M50

GRD3RD Standard designation of the grade 3rd application

S30-S50

GRDMFG Grade manufacturers designation

TT8020

GRDPRIO Standard designation of the grade main application

P30-P50

ID Technical product number

5580669

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-00 - Regular Insert unspecified

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IL-WSP-3745

Name Identifying order number

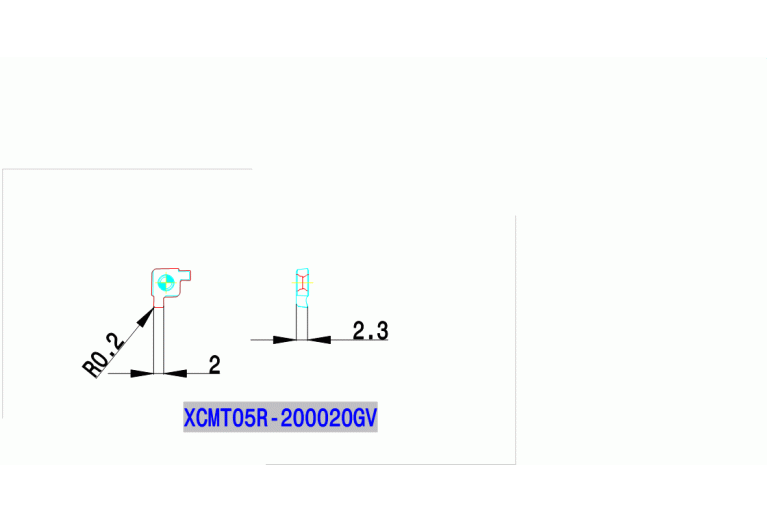

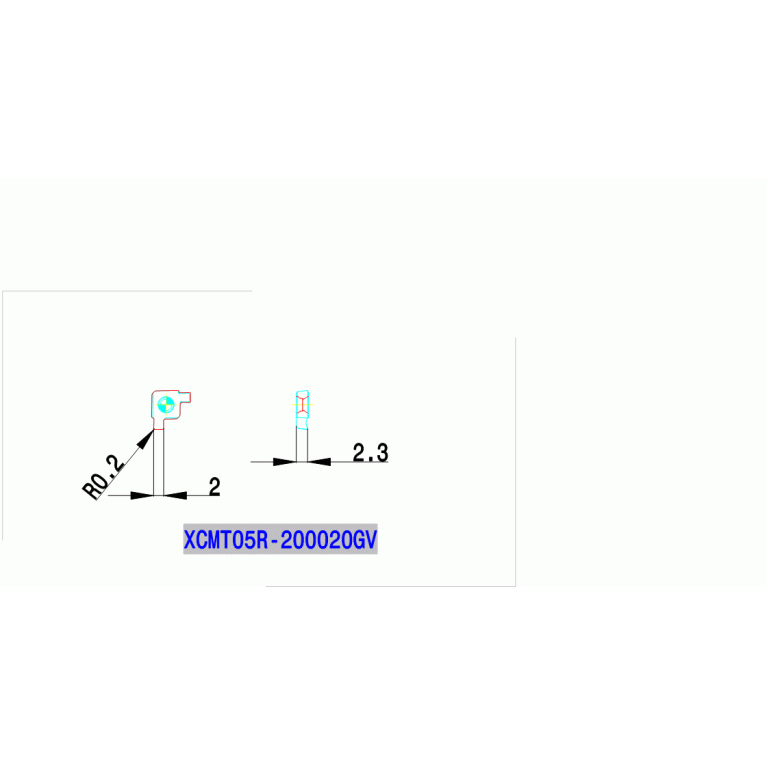

XCMT 05R-200020GV TT8020

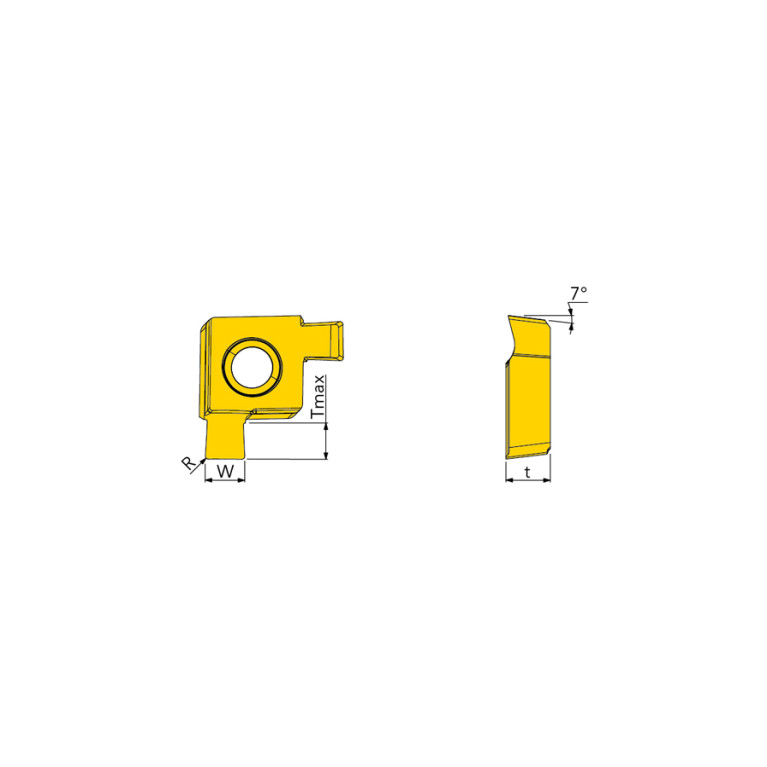

RE Corner radius

0.2 mm

S Insert thickness

2.28 mm

S1 Insert thickness total

2.28 mm

TCINS Tolerance class insert

W1 Insert width

2 mm

Working process

No working processes available
