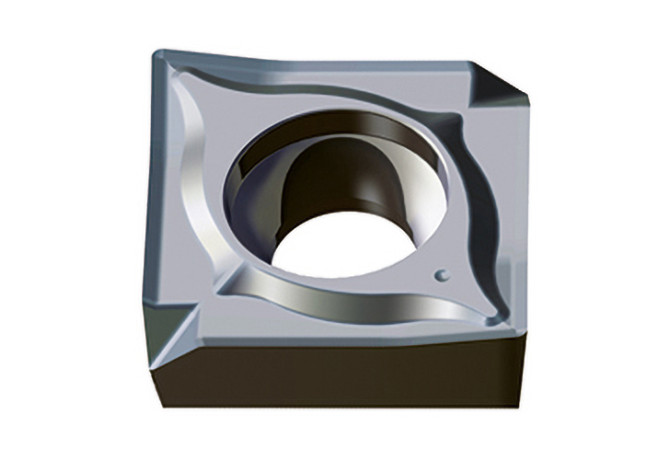

XCGT 10T304 TA K10

Артикул: 5518808

В наличии

В корзину

Описание

Характеристики

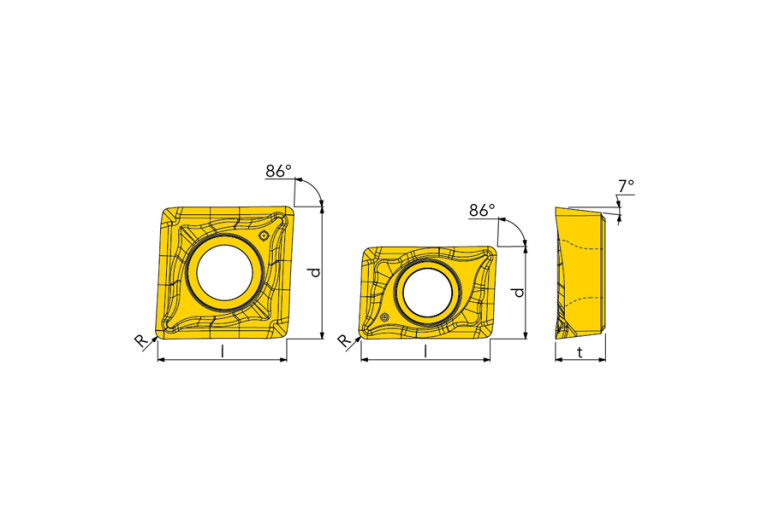

AN Clearance angle major

7 Degree

CB Chip breaker face count

0 - Without chip breaker

COMPC Company code

IL - Ingersoll

Delivery state

LL - Stock limited

DIN

XC10T3043N

FamilyProducts

insert, T-CAP Insert

GRD2ND Standard designation of the grade 2nd application

K05-K15

GRDMFG Grade manufacturers designation

K10

GRDPRIO Standard designation of the grade main application

N05-N15

ID Technical product number

5518808

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-00 - Regular Insert unspecified

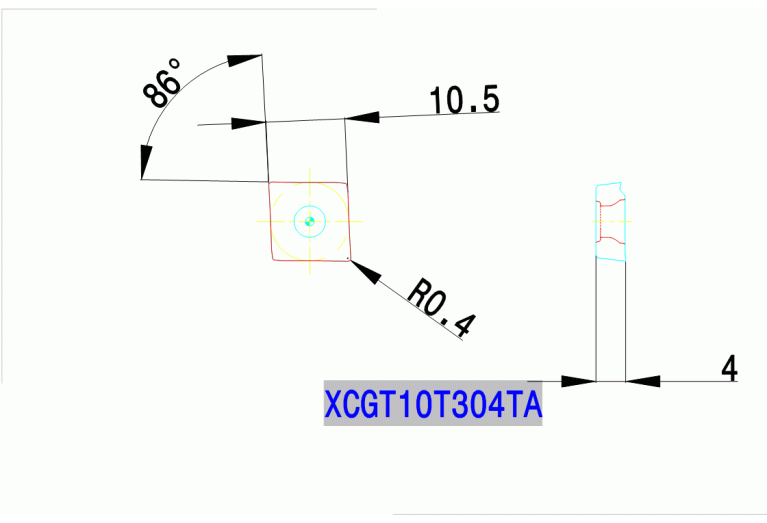

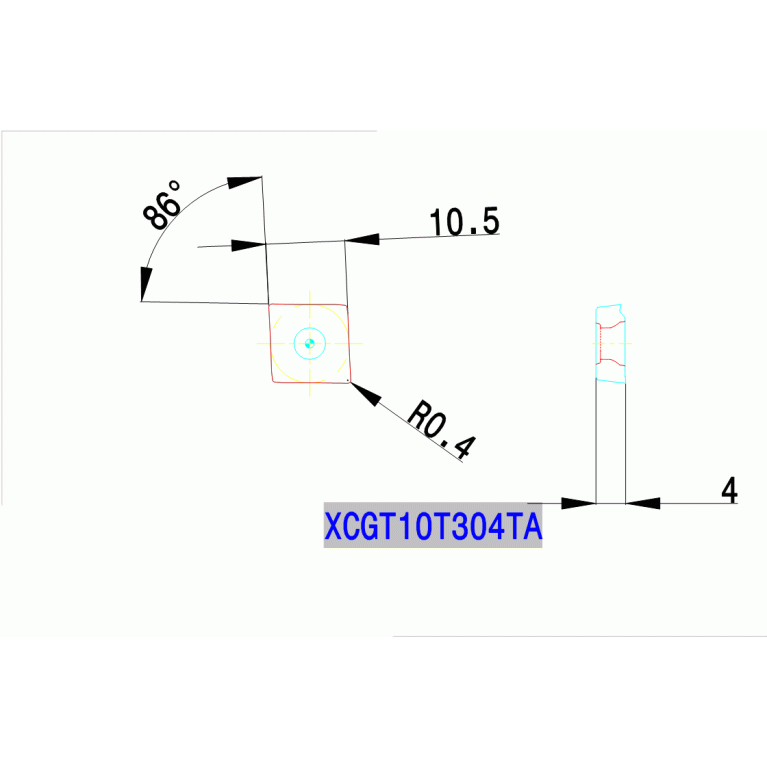

L Cutting edge length

10.5 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

XC10T3043N

Name Identifying order number

XCGT 10T304 TA K10

RE Corner radius

0.4 mm

S Insert thickness

3.97 mm

S1 Insert thickness total

3.97 mm

STDDES Standard designation

XCGT10T304

TCINS Tolerance class insert

Working process

No working processes available
