Главная Каталог продукции Toolunited 16 201-00 - Regular Insert unspecified WEC300PETR9C NX2525

WEC300PETR9C NX2525

Артикул: WEC300PETR9C NX2525

В наличии

В корзину

Описание

Характеристики

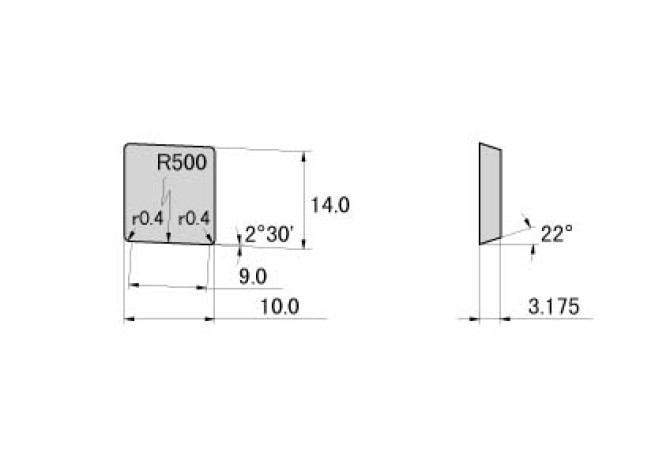

AN Clearance angle major

22 Degree

AS Clearance angle wiper edge

0 Degree

CB Chip breaker face count

0 - Without chip breaker

COMPC Company code

MI - Mitsubishi Materials

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

4/1/2022

DIN

MI-WEC300PETR9C

EPSR Insert included angle

80 Degree

FamilyProducts

INSERT, MILLING, CERMET

GAN Insert rake angle

0 Degree

GRD2ND Standard designation of the grade 2nd application

CT-K10

GRD3RD Standard designation of the grade 3rd application

CT-K20

GRDMFG Grade manufacturers designation

NX2525

GRDPRIO Standard designation of the grade main application

CT-P20

IFS Insert mounting style code

1 - Without bore

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-00 - Regular Insert unspecified

L Cutting edge length

10 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

MI-WEC300PETR9C

Materials

P,K

Name Identifying order number

WEC300PETR9C NX2525

S Insert thickness

3.17 mm

S1 Insert thickness total

3.17 mm

TCINS Tolerance class insert

W1 Insert width

14 mm

Working process

FPL - Face milling,FZI - Circular milling
