Главная Каталог продукции Toolunited 16 201-00 - Regular Insert unspecified UW15500 R AC211

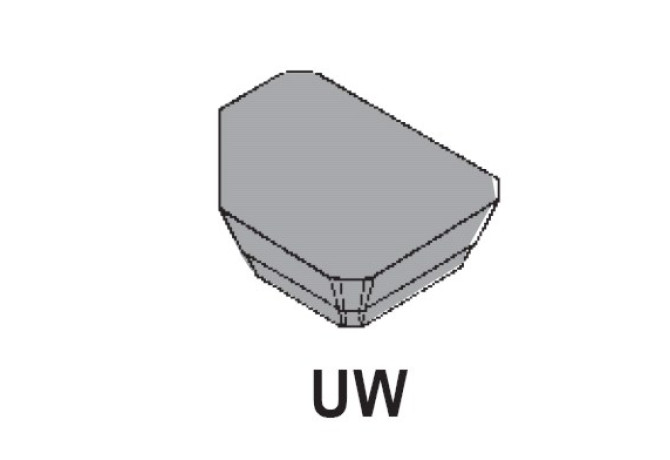

UW15500 R AC211

Артикул: UW15500 R AC211

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

25 Degree

AS Clearance angle wiper edge

32 Degree

CECC Cutting edge condition code

E - Rounded

CHW Corner chamfer width

2.2 mm

COATN Coating / Покрытие

Al2O3

COMPC Company code

SU - Sumitomo

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

1/16/2007

DIN

UW15500R

EPSR Insert included angle

90 Degree

FamilyProducts

insert for finishing of steel or cast iron, pos.

GRD2ND Standard designation of the grade 2nd application

HC-K01

GRD3RD Standard designation of the grade 3rd application

HC-M10

GRDMFG Grade manufacturers designation

AC211

GRDPRIO Standard designation of the grade main application

HC-K10

IC Inscribed circle diameter

15.3 mm

ID Technical product number

UW15500 R AC211

IFS Insert mounting style code

1 - Without bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-00 - Regular Insert unspecified

KCH Corner chamfer angle

45 Degree

L Cutting edge length

20 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

UW15500R

Materials

Name Identifying order number

UW15500 R AC211

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

W1 Insert width

15.3 mm

Working process

No working processes available
