UPE32E UTi20T

Артикул: UPE32E UTi20T

В наличии

В корзину

Описание

Характеристики

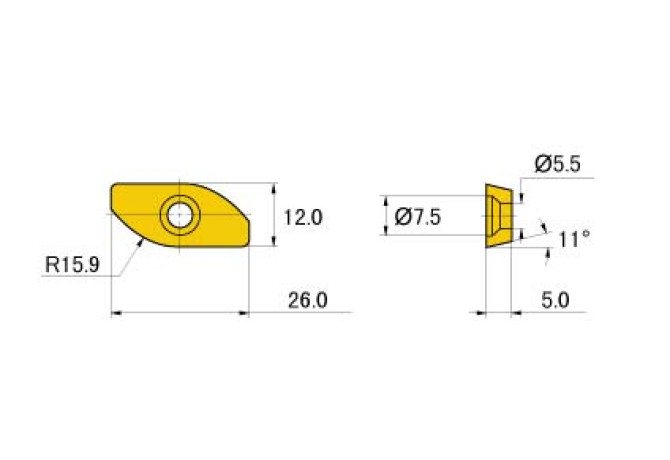

AN Clearance angle major

11 Degree

AS Clearance angle wiper edge

0 Degree

CB Chip breaker face count

0 - Without chip breaker

COMPC Company code

MI - Mitsubishi Materials

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

5.5 mm

Delivery state valid from

4/1/2022

DIN

MI-UPE32E

FamilyProducts

INSERT, MILLING, UNCOATED

GAN Insert rake angle

0 Degree

GRD2ND Standard designation of the grade 2nd application

HW-P20-P30

GRD3RD Standard designation of the grade 3rd application

HW-K20-K30

GRDMFG Grade manufacturers designation

UTi20T

GRDPRIO Standard designation of the grade main application

HW-M20-M30

IFS Insert mounting style code

4 - Counter bore for screws with taper angle from 70° to 90°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-00 - Regular Insert unspecified

L Cutting edge length

26 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

MI-UPE32E

Materials

P,M,K,H

Name Identifying order number

UPE32E UTi20T

S Insert thickness

5 mm

S1 Insert thickness total

5 mm

W1 Insert width

12 mm

Working process

FEC - Square shoulder milling,FPL - Face milling,FPR - Profile milling,FZI - Circular milling
