UPE30E UP20M

Артикул: UPE30E UP20M

В наличии

В корзину

Описание

Характеристики

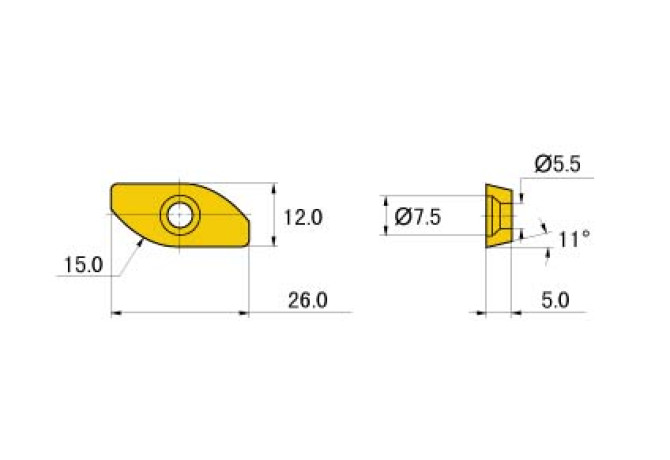

AN Clearance angle major

11 Degree

AS Clearance angle wiper edge

0 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating / Покрытие

TiN-Verb.

COMPC Company code

MI - Mitsubishi Materials

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

5.5 mm

Delivery state valid from

4/1/2022

DIN

MI-UPE30E

FamilyProducts

INSERT, MILLING, COATED

GAN Insert rake angle

0 Degree

GRD2ND Standard designation of the grade 2nd application

HC-M20-M30

GRDMFG Grade manufacturers designation

UP20M

GRDPRIO Standard designation of the grade main application

HC-P20-P30

IFS Insert mounting style code

4 - Counter bore for screws with taper angle from 70° to 90°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-00 - Regular Insert unspecified

L Cutting edge length

26 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

MI-UPE30E

Materials

Name Identifying order number

UPE30E UP20M

S Insert thickness

5 mm

S1 Insert thickness total

5 mm

W1 Insert width

12 mm

Working process

FEC - Square shoulder milling,FPL - Face milling,FPR - Profile milling,FZI - Circular milling
