Главная Каталог продукции Toolunited 16 201-00 - Regular Insert unspecified UDC30F AP25N

UDC30F AP25N

Артикул: UDC30F AP25N

В наличии

В корзину

Описание

Характеристики

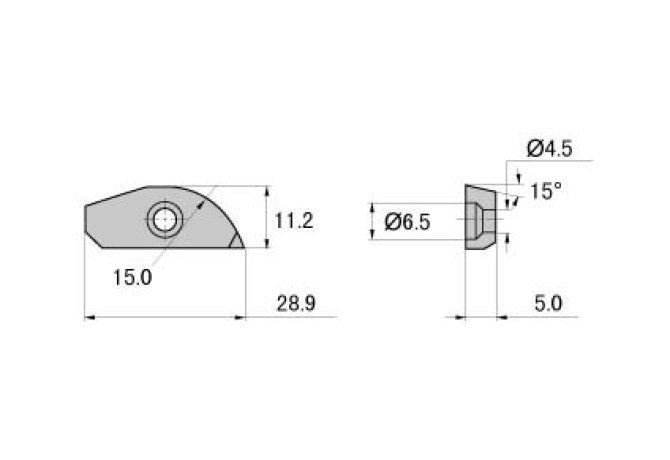

AN Clearance angle major

15 Degree

COATN Coating / Покрытие

(Ti, Al)N

COMPC Company code

MI - Mitsubishi Materials

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.5 mm

Delivery state valid from

4/1/2022

DIN

MI-UDC30F

EPSR Insert included angle

15 Degree

FamilyProducts

INSERT, MILLING, CERMET

GRD2ND Standard designation of the grade 2nd application

CC-K10

GRD3RD Standard designation of the grade 3rd application

CC-K20

GRDMFG Grade manufacturers designation

AP25N

GRDPRIO Standard designation of the grade main application

CC-P01

IC Inscribed circle diameter

28.9 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-00 - Regular Insert unspecified

L Cutting edge length

28.9 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

MI-UDC30F

Materials

P,M

Name Identifying order number

UDC30F AP25N

S Insert thickness

5 mm

S1 Insert thickness total

5 mm

STDDES Standard designation

UDC30F

W1 Insert width

11.2 mm

Working process

F - Milling,FFO - Die milling,FNU - Groove milling,FPR - Profile milling
