T490 LNMT 0804PNR IC810

Артикул: 5606107

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CECC Cutting edge condition code

T - Chamfered

COATN Coating / Покрытие

AlTiN+TiN

COMPC Company code

IS - Iscar

DIN

IS-906478313787228

EPSR Insert included angle

90 Degree

FamilyProducts

Tangentially Clamped Inserts with 4 Helical Cutting Edges

GRDMFG Grade manufacturers designation

IC810

ID Technical product number

5606107

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 / J441

ISISO ISO property

ISO

IS$$906478313787228

ISYC Subclass

201-00 - Regular Insert unspecified

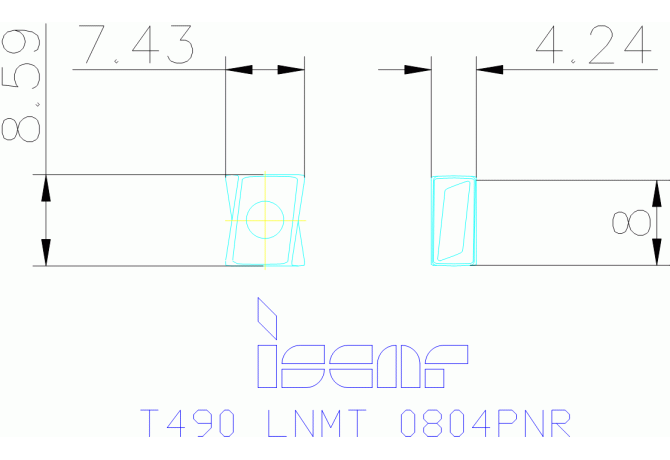

L Cutting edge length

8.59 mm

LOC-03 ISO

IS$$906478313787228

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IS-906478313787228

Name Identifying order number

T490 LNMT 0804PNR IC810

RE Corner radius

0.4 mm

S Insert thickness

7.43 mm

W1 Insert width

4.24 mm

Working process

FEC - Square shoulder milling
