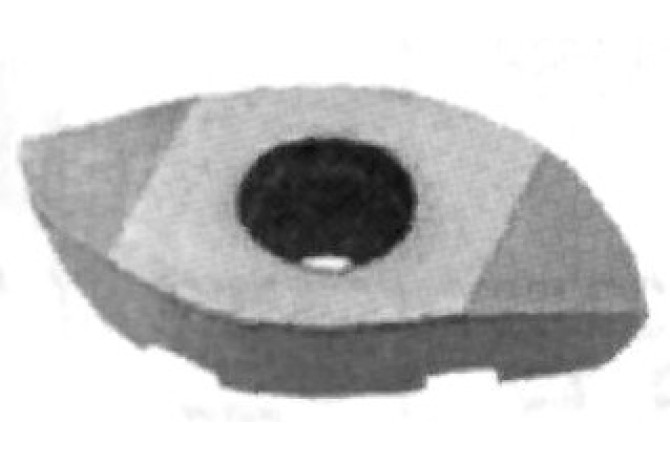

SRG32C F7030

Артикул: SRG32C F7030

В наличии

В корзину

Описание

Характеристики

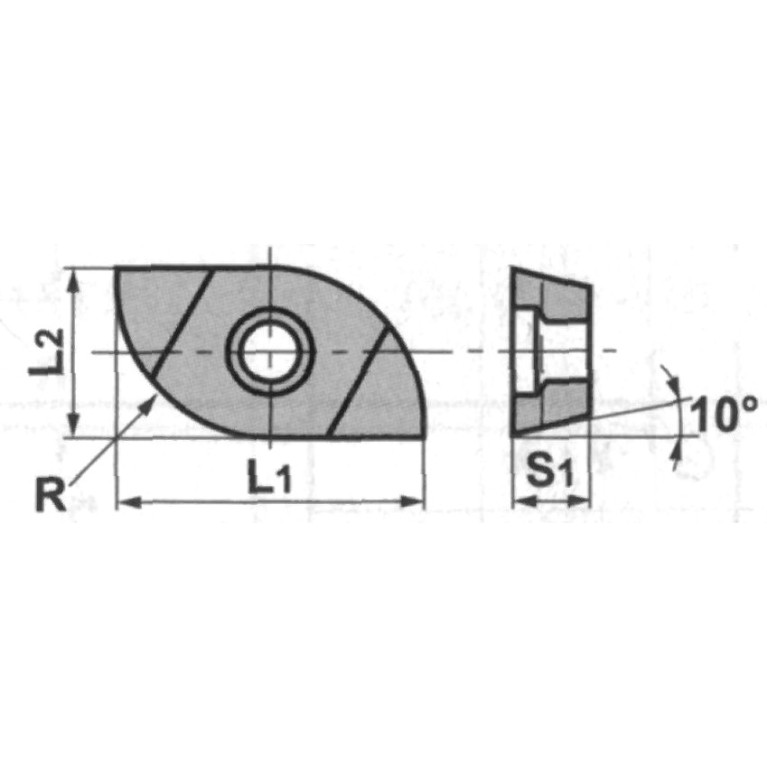

AN Clearance angle major

10 Degree

COATN Coating / Покрытие

TiN-Al2O3

COMPC Company code

MI - Mitsubishi Materials

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

4/1/2022

DIN

SRG32C

FamilyProducts

insert for milling

GRD2ND Standard designation of the grade 2nd application

HC-M10

GRD3RD Standard designation of the grade 3rd application

HC-P30

GRDMFG Grade manufacturers designation

F7030

GRDPRIO Standard designation of the grade main application

HC-P10

IC Inscribed circle diameter

16.3 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-00 - Regular Insert unspecified

L Cutting edge length

28 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SRG32C

Materials

P,M

Name Identifying order number

SRG32C F7030

RE Corner radius

16 mm

S Insert thickness

7 mm

S1 Insert thickness total

7 mm

TCINS Tolerance class insert

W1 Insert width

16.3 mm

Working process

F - Milling,FFO - Die milling,FNU - Groove milling
