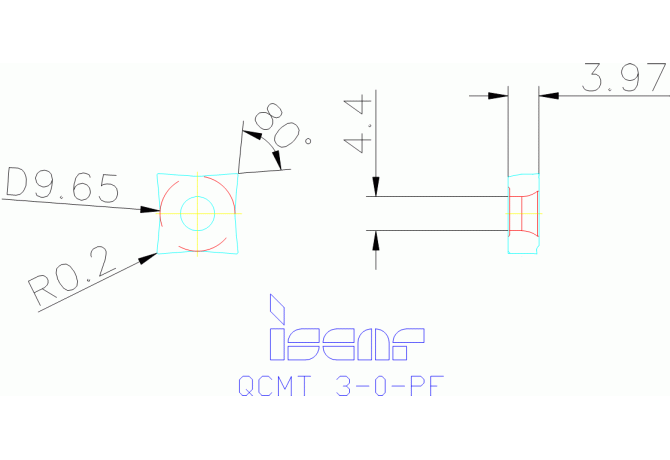

QCMT 09T302-PF IC908

Артикул: 5505694

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

TiAlN

COMPC Company code

IS - Iscar

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.4 mm

Delivery state valid from

2/1/2012

DIN

QC09T3023N

EPSR Insert included angle

80 Degree

FamilyProducts

QCMT 09T302-PF IC908

GAN Insert rake angle

7 Degree

GRD2ND Standard designation of the grade 2nd application

HC-M30

GRD3RD Standard designation of the grade 3rd application

HC-K40

GRDMFG Grade manufacturers designation

IC908

GRDPRIO Standard designation of the grade main application

HC-P30

IC Inscribed circle diameter

9.65 mm

ID Technical product number

5505694

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-00 - Regular Insert unspecified

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

QC09T3023N

Materials

Name Identifying order number

QCMT 09T302-PF IC908

RE Corner radius

0.2 mm

S Insert thickness

3.97 mm

S1 Insert thickness total

3.97 mm

TCINS Tolerance class insert

Working process

No working processes available
