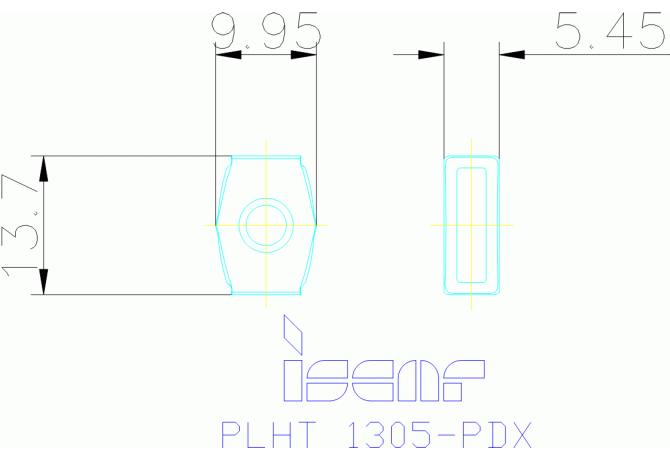

PLHT 1305-PDX IC908

Артикул: 5603078

В наличии

В корзину

Описание

Характеристики

CECC Cutting edge condition code

T - Chamfered

COATN Coating / Покрытие

TiAlN

COMPC Company code

IS - Iscar

DIN

IS-77246992257588

FamilyProducts

Tangentially Clamped Inserts with 4 Cutting Edges for Plungers

GRDMFG Grade manufacturers designation

IC908

ID Technical product number

5603078

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 / J441

ISISO ISO property

ISO

IS$$77246992257588

ISYC Subclass

201-00 - Regular Insert unspecified

L Cutting edge length

13.7 mm

LOC-03 ISO

IS$$77246992257588

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IS-77246992257588

Name Identifying order number

PLHT 1305-PDX IC908

S Insert thickness

9.95 mm

W1 Insert width

5.45 mm

Working process

No working processes available

WT Weight of item

0.01 kg
