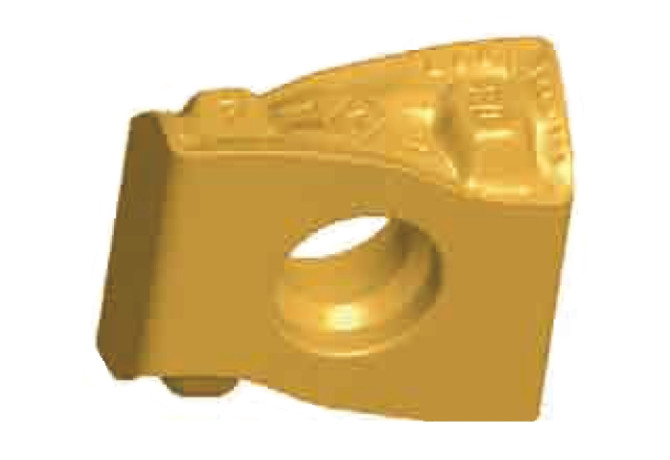

LNMX120408R-TWR T9125

Артикул: LNMX120408R-TWR T9125

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

CBMD Chip breaker manufacturers designation

TWR

COATN Coating / Покрытие

MT-CVD

COMPC Company code

TT - Tungaloy

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

3.6 mm

Delivery state valid from

4/1/2013

DIN

LN1204 4R

EPSR Insert included angle

90 Degree

FamilyProducts

Turntec insert with wiper edge

GRD2ND Standard designation of the grade 2nd application

HC-P30

GRDMFG Grade manufacturers designation

T9125

GRDPRIO Standard designation of the grade main application

HC-P20

IC Inscribed circle diameter

4.8 mm

IFS Insert mounting style code

4 - Counter bore for screws with taper angle from 70° to 90°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-00 - Regular Insert unspecified

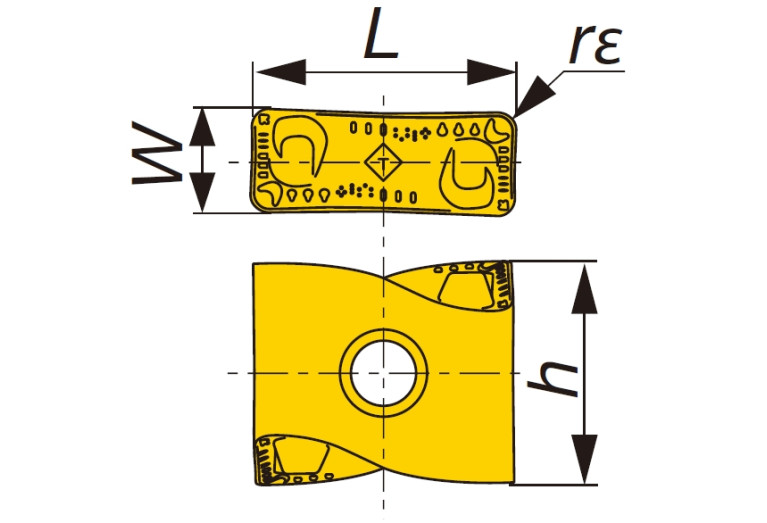

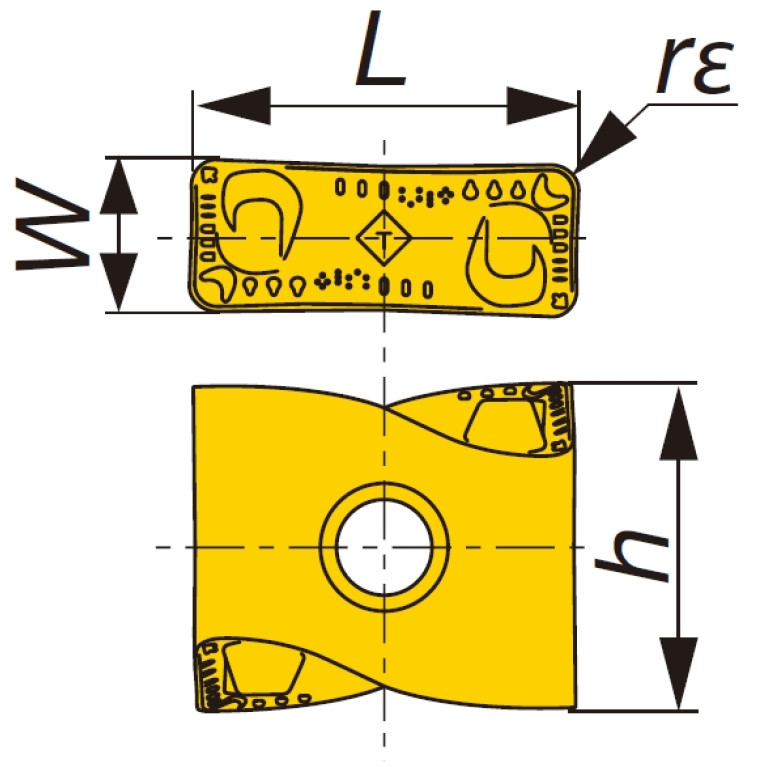

L Cutting edge length

12 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

LN1204 4R

Materials

Name Identifying order number

LNMX120408R-TWR T9125

RE Corner radius

0.8 mm

S Insert thickness

11.6 mm

S1 Insert thickness total

11.6 mm

STDDES Standard designation

LNMX120408R

TCINS Tolerance class insert

W1 Insert width

4.8 mm

Working process

DDA - External turning
