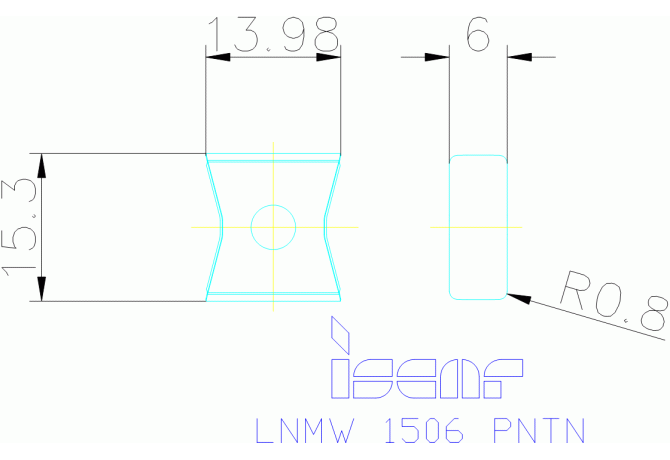

LNMW 1506 PNTN IC4100

Артикул: 5605496

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CECC Cutting edge condition code

T - Chamfered

COATN Coating / Покрытие

TiCN+Al2O3+TiN

COMPC Company code

IS - Iscar

DIN

IS-977205210389208

EPSR Insert included angle

90 Degree

FamilyProducts

Tangentially Clamped Insert for Machining Grey and Nodular Cast Iron

GRDMFG Grade manufacturers designation

IC4100

ID Technical product number

5605496

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

IS$$977205210389208

ISYC Subclass

201-00 - Regular Insert unspecified

L Cutting edge length

15 mm

LOC-03 ISO

IS$$977205210389208

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IS-977205210389208

Name Identifying order number

LNMW 1506 PNTN IC4100

RE Corner radius

0.8 mm

S Insert thickness

13.98 mm

W1 Insert width

6 mm

Working process

No working processes available

WT Weight of item

0.01 kg
