Главная Каталог продукции Toolunited 16 201-00 - Regular Insert unspecified LNMT 1506PNTN-HT IC910

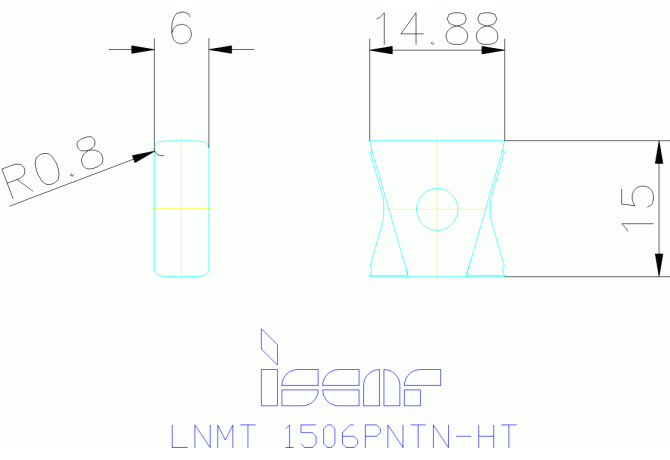

LNMT 1506PNTN-HT IC910

Артикул: 5691182

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CECC Cutting edge condition code

T - Chamfered

COATN Coating / Покрытие

AlTiN

COMPC Company code

IS - Iscar

DIN

IS-899171282171994

EPSR Insert included angle

90 Degree

FamilyProducts

Tangentially Clamped Inserts with 4 Straight Cutting Edges: 2 L.H. and 2 R.H.

GRDMFG Grade manufacturers designation

IC910

ID Technical product number

5691182

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

IS$$899171282171994

ISYC Subclass

201-00 - Regular Insert unspecified

L Cutting edge length

15 mm

LOC-03 ISO

IS$$899171282171994

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IS-899171282171994

Name Identifying order number

LNMT 1506PNTN-HT IC910

RE Corner radius

0.8 mm

S Insert thickness

14.03 mm

W1 Insert width

6 mm

Working process

No working processes available

WT Weight of item

0.01 kg
