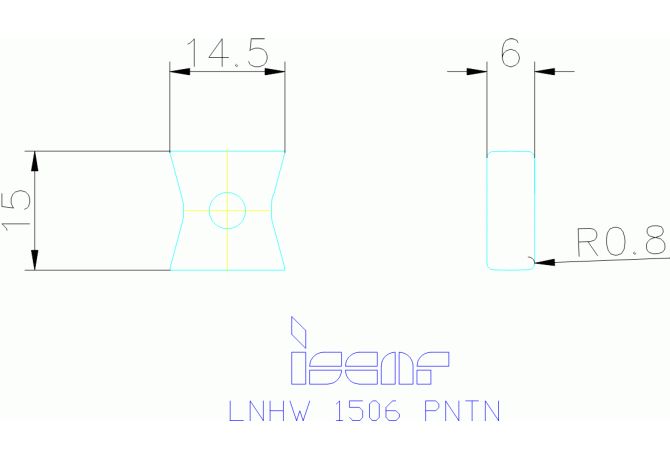

LNHW 1506 PNTN IS8

Артикул: 5603503

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CECC Cutting edge condition code

T - Chamfered

COATN Coating / Покрытие

ohne

COMPC Company code

IS - Iscar

DIN

IS-899936653958928

EPSR Insert included angle

90 Degree

FamilyProducts

Tangentially Clamped Ceramic Insert for High Speed Machining of Grey and Nodular Cast Iron

GRDMFG Grade manufacturers designation

IS8

ID Technical product number

5603503

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

IS$$899936653958928

ISYC Subclass

201-00 - Regular Insert unspecified

L Cutting edge length

15 mm

LOC-03 ISO

IS$$899936653958928

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IS-899936653958928

Name Identifying order number

LNHW 1506 PNTN IS8

RE Corner radius

0.8 mm

S Insert thickness

14.47 mm

W1 Insert width

6 mm

Working process

No working processes available
