LNAT 1506AN-W IC908

Артикул: 5603018

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

BS Wiper edge length

7.2 mm

CECC Cutting edge condition code

T - Chamfered

COATN Coating / Покрытие

TiAlN

COMPC Company code

IS - Iscar

DIN

IS-328908320749692

FamilyProducts

Tangentially Clamped Wiper Inserts for 45° Lead Angle on F45LN Cutters

GRDMFG Grade manufacturers designation

IC908

ID Technical product number

5603018

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

IS$$328908320749692

ISYC Subclass

201-00 - Regular Insert unspecified

KRINS Cutting edge angle major

45 Degree

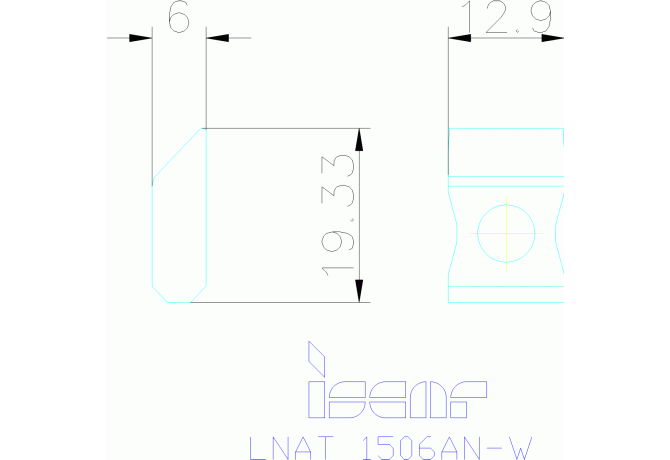

L Cutting edge length

19.33 mm

LOC-03 ISO

IS$$328908320749692

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IS-328908320749692

Name Identifying order number

LNAT 1506AN-W IC908

S Insert thickness

12.9 mm

W1 Insert width

5.98 mm

Working process

No working processes available

WT Weight of item

0.02 kg
