LNAT 150625PN-N MM IC910

Артикул: 5603645

В наличии

В корзину

Описание

Характеристики

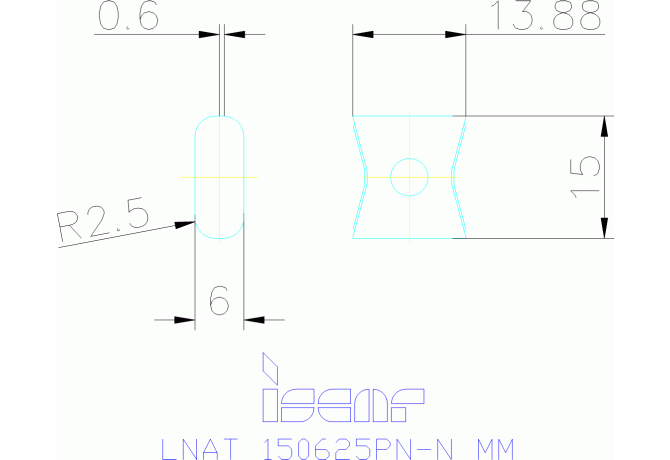

AN Clearance angle major

0 Degree

BS Wiper edge length

0.6 mm

CECC Cutting edge condition code

T - Chamfered

COATN Coating / Покрытие

AlTiN

COMPC Company code

IS - Iscar

DIN

IS-821902725741714

EPSR Insert included angle

90 Degree

FamilyProducts

Tangentially Clamped Precision Ground Inserts with Various Corner Radii for Corner Rounding

GRDMFG Grade manufacturers designation

IC910

ID Technical product number

5603645

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

IS$$821902725741714

ISYC Subclass

201-00 - Regular Insert unspecified

L Cutting edge length

15 mm

LOC-03 ISO

IS$$821902725741714

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IS-821902725741714

Name Identifying order number

LNAT 150625PN-N MM IC910

RE Corner radius

2.5 mm

S Insert thickness

13.88 mm

W1 Insert width

6 mm

Working process

No working processes available

WT Weight of item

0.01 kg
