Главная Каталог продукции Toolunited 16 201-00 - Regular Insert unspecified GPMT11T308-U3 UE6020

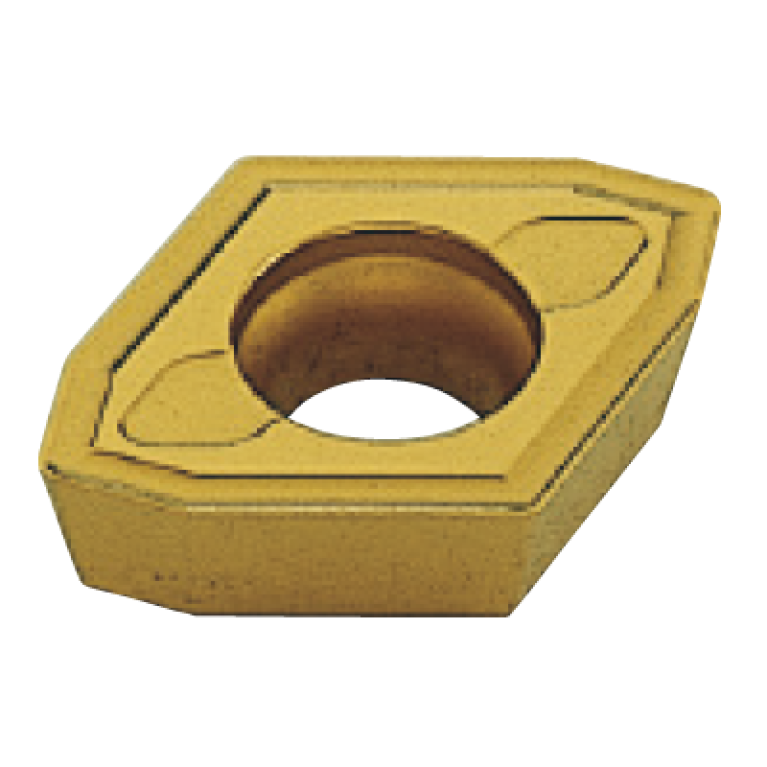

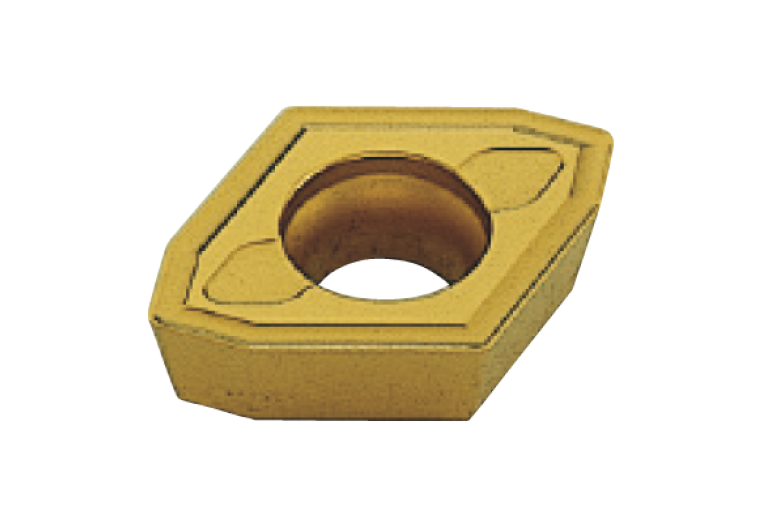

GPMT11T308-U3 UE6020

GPMT11T308-U3 UE6020 GPMT11T308-U3 UE6020 GPMT11T308-U3 UE6020

GPMT11T308-U3 UE6020

Mitsubishi Materials
Артикул: 181551
В наличии
В корзину
Описание
Характеристики

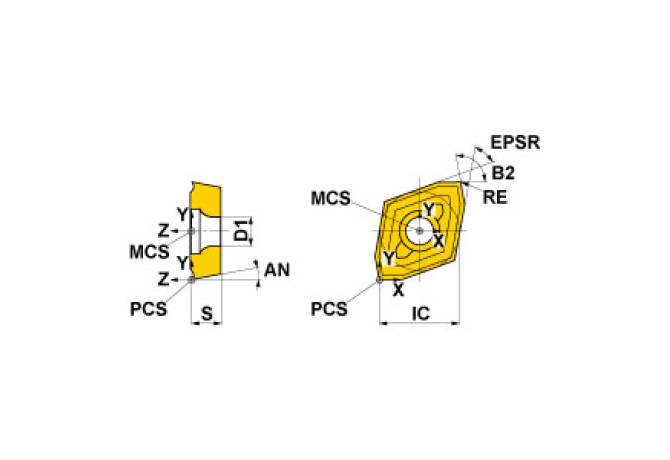

AN Clearance angle major
11 Degree
CB Chip breaker face count
1 - With chip breaker one-side
CBMD Chip breaker manufacturers designation
U3
CECC Cutting edge condition code
E - Rounded
COATN Coating / Покрытие
TiCN-Al2O3-Ti
COMPC Company code
MI - Mitsubishi Materials
D1 Fixing hole diameter
4.6 mm
Delivery state valid from
3/31/2003
EPSR Insert included angle
60 Degree
FamilyProducts
Insert for drilling tools
GRDMFG Grade manufacturers designation
UE6020
IC Inscribed circle diameter
9.525 mm
ID Technical product number
181551
IFS Insert mounting style code
3 - Counter bore for screws with taper angle from 40° to 60°
IH Insert hand
R - Right
Interface codes
J6 / J441
ISISO ISO property
0
ISO
MI$$GP11T3083RB$$08
ISYC Subclass
201-00 - Regular Insert unspecified
LOC-03 ISO
MI$$GP11T3083RB$$08
LOC-03-Connection-codes
J6 / J441 - connection code machine end
Name Identifying order number
GPMT11T308-U3 UE6020
NOI Insert index count
2
RE Corner radius
0.8 mm
S Insert thickness
3.97 mm
TCE Tipped cutting edge code
S
Working process
No working processes available
