CTXW09T302E04RD-HC417

CTXW09T302E04RD-HC417

Mapal
Артикул: 30056776
В наличии
В корзину
Характеристики
CECC Cutting edge condition code
E - Rounded
COMPC Company code
MP - Mapal
CSP Coolant supply property
0 - Without coolant supply
D1 Fixing hole diameter
3.6 mm
Delivery state valid from
10/1/2010
DIN
CT09T3 3R

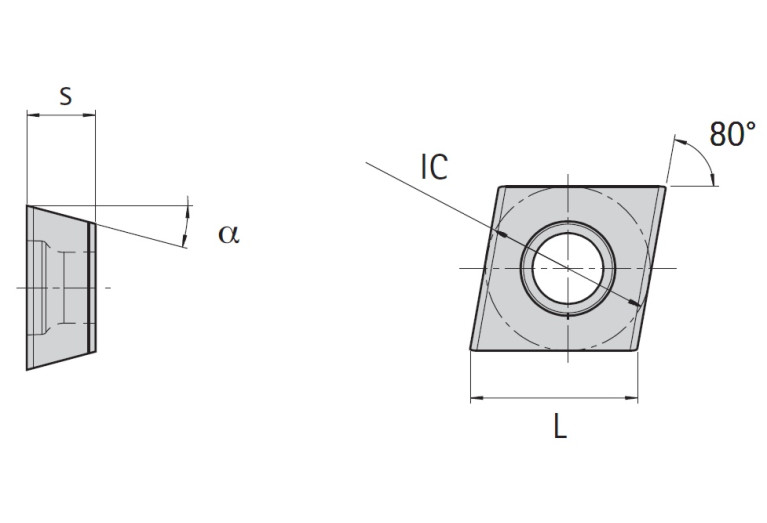

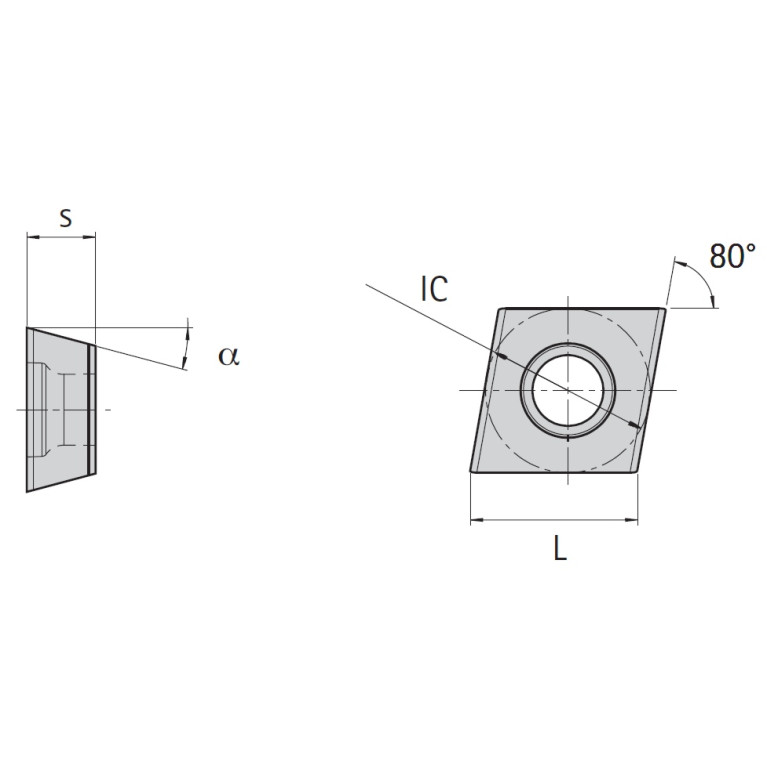

EPSR Insert included angle
80 Degree
FamilyProducts
Tangential-Wendeschneidplatte, 2-schn., X-Qualität
FLSC Face land size code
04
GB Face land angle
15 Degree
GRDMFG Grade manufacturers designation
HC417
IC Inscribed circle diameter
9.525 mm
ID Technical product number
30056776
IFS Insert mounting style code
3 - Counter bore for screws with taper angle from 40° to 60°
IH Insert hand
R - Right
Interface codes
J6 /
ISISO ISO property
0
ISYC Subclass
201-00 - Regular Insert unspecified
L Cutting edge length
9 mm
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
CT09T3 3R
Name Identifying order number
CTXW09T302E04RD-HC417
RE Corner radius
0.2 mm
S Insert thickness
3.97 mm
S1 Insert thickness total
3.97 mm
STDDES Standard designation
CTXW09T302R
TCINS Tolerance class insert
X
Working process
No working processes available
