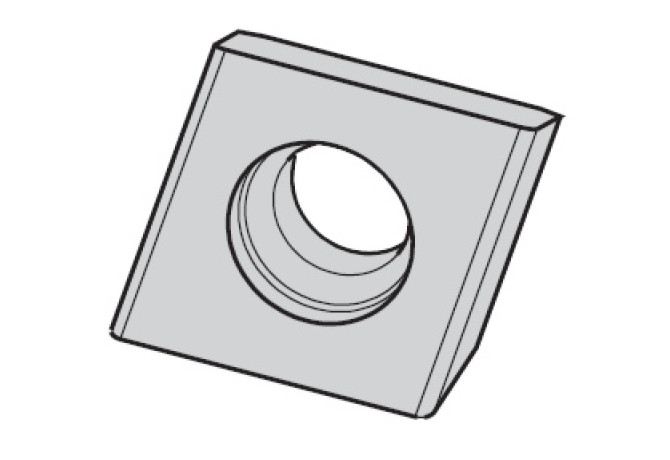

CTXW090308E04LD-HC417

Артикул: 30056750

В наличии

В корзину

Описание

Характеристики

CECC Cutting edge condition code

E - Rounded

COMPC Company code

MP - Mapal

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

3.6 mm

Delivery state valid from

10/1/2010

DIN

CT0903 3L

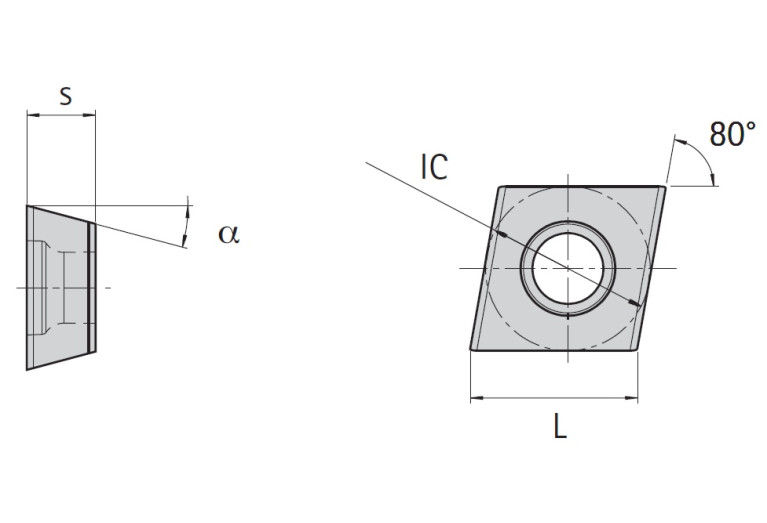

EPSR Insert included angle

80 Degree

FamilyProducts

Tangential-Wendeschneidplatte, 2-schn., X-Qualität

FLSC Face land size code

GB Face land angle

15 Degree

GRDMFG Grade manufacturers designation

HC417

IC Inscribed circle diameter

6.35 mm

ID Technical product number

30056750

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

L - Left

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-00 - Regular Insert unspecified

L Cutting edge length

9 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

CT0903 3L

Name Identifying order number

CTXW090308E04LD-HC417

RE Corner radius

0.8 mm

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

CTXW090308L

STDDESAnsi Standard designation ANSI

CTXW322L

TCINS Tolerance class insert

Working process

No working processes available
