BCR D320-CS IC908

Артикул: 5605029

В наличии

В корзину

Описание

Характеристики

CECC Cutting edge condition code

T - Chamfered

COATN Coating / Покрытие

TiAlN

COMPC Company code

IS - Iscar

DIN

IS-28881696535046

FamilyProducts

Ball Nose Inserts with a Straight Cutting Edge Tangent to a Round Corner

GRDMFG Grade manufacturers designation

IC908

ID Technical product number

5605029

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

INSL Insert length

28 mm

Interface codes

J6 / J441

ISISO ISO property

ISO

IS$$28881696535046

ISYC Subclass

201-00 - Regular Insert unspecified

L Cutting edge length

28 mm

LOC-03 ISO

IS$$28881696535046

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IS-28881696535046

Name Identifying order number

BCR D320-CS IC908

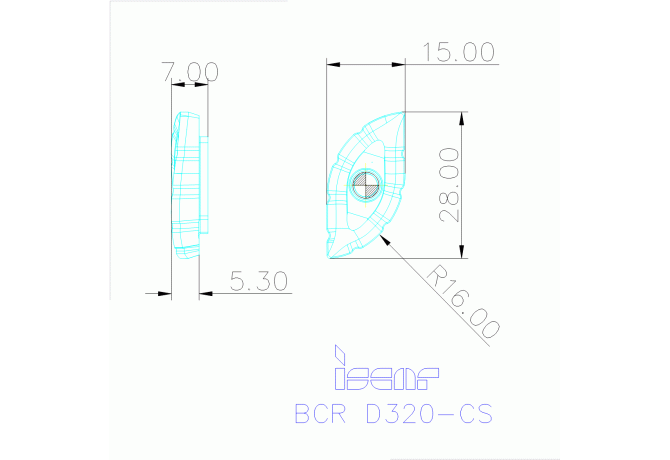

S Insert thickness

5.3 mm

S1 Insert thickness total

7 mm

W1 Insert width

15 mm

Working process

FFO - Die milling

WT Weight of item

0.02 kg
