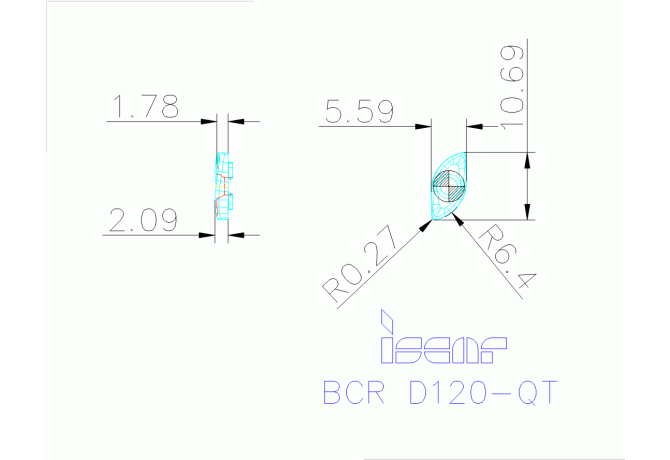

BCR D120-QT IC908

Артикул: 5605368

В наличии

В корзину

Описание

Характеристики

CECC Cutting edge condition code

T - Chamfered

COATN Coating / Покрытие

TiAlN

COMPC Company code

IS - Iscar

DIN

IS-38535495133030

FamilyProducts

Ball Nose Inserts with a Straight Cutting Edge Tangent to a Round Corner

GRDMFG Grade manufacturers designation

IC908

ID Technical product number

5605368

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

INSL Insert length

10.6 mm

Interface codes

J6 / J441

ISISO ISO property

ISO

IS$$38535495133030

ISYC Subclass

201-00 - Regular Insert unspecified

L Cutting edge length

10.6 mm

LOC-03 ISO

IS$$38535495133030

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IS-38535495133030

Name Identifying order number

BCR D120-QT IC908

S Insert thickness

2.3 mm

S1 Insert thickness total

3.2 mm

W1 Insert width

5.8 mm

Working process

FFO - Die milling
