Главная Каталог продукции Toolunited 16 201-00 - Regular Insert unspecified AOMT 030204-N-45DT IC1008

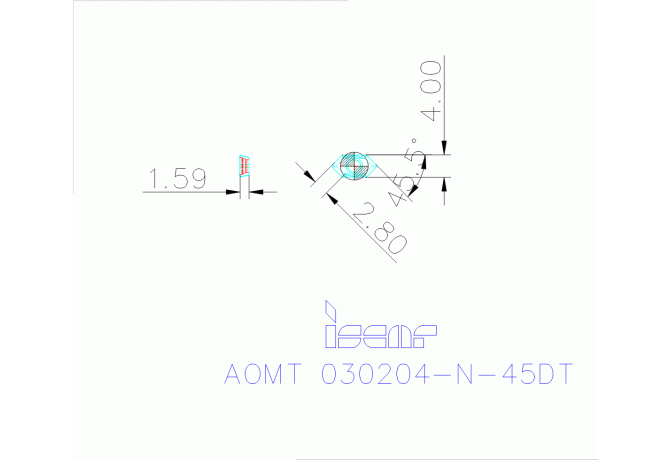

AOMT 030204-N-45DT IC1008

Артикул: 5507143

В наличии

В корзину

Описание

Характеристики

CB Chip breaker face count

1 - With chip breaker one-side

COATN Coating / Покрытие

TiAlN+TiN

COMPC Company code

IS - Iscar

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

2/1/2012

DIN

AO0302043N

EPSR Insert included angle

61 Degree

FamilyProducts

AOMT 030204-N-45DT IC1008

GRD2ND Standard designation of the grade 2nd application

HC-H30

GRD3RD Standard designation of the grade 3rd application

HC-S25

GRDMFG Grade manufacturers designation

IC1008

GRDPRIO Standard designation of the grade main application

HC-P50

IC Inscribed circle diameter

4 mm

ID Technical product number

5507143

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-00 - Regular Insert unspecified

L Cutting edge length

2.8 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

AO0302043N

Name Identifying order number

AOMT 030204-N-45DT IC1008

RE Corner radius

0.4 mm

S Insert thickness

1.59 mm

S1 Insert thickness total

1.59 mm

TCINS Tolerance class insert

W1 Insert width

4 mm

Working process

No working processes available
