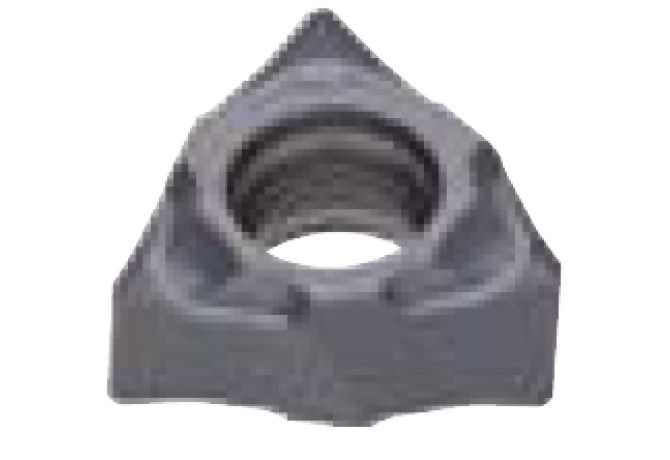

WXGU040302L-SS GT530

Артикул: WXGU040302L-SS GT530

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

CBMD Chip breaker manufacturers designation

COMPC Company code

TT - Tungaloy

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

2.7 mm

Delivery state valid from

1/2/2016

DIN

WX0403 3L

EPSR Insert included angle

80 Degree

FamilyProducts

80° Trigon insert WXGU-SS

GAN Insert rake angle

30 Degree

GRD2ND Standard designation of the grade 2nd application

HT-K20

GRDMFG Grade manufacturers designation

GT530

GRDPRIO Standard designation of the grade main application

HT-P15

IC Inscribed circle diameter

6.35 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

L - Left

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-07 - Trigon insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

WX0403 3L

Materials

P,K

Name Identifying order number

WXGU040302L-SS GT530

RE Corner radius

0.2 mm

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

WXGU040302L-SS

TCINS Tolerance class insert

Working process

DDI - Internal turning
