WWMU11X512R-DS AH6030

Артикул: 6993659

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

1 Degree

BS Wiper edge length

5.5 mm

CB Chip breaker face count

0 - Without chip breaker

CBMD Chip breaker manufacturers designation

COMPC Company code

TT - Tungaloy

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

5.5 mm

Delivery state valid from

4/23/2015

DIN

WW11X5123R

EPSR Insert included angle

80 Degree

FamilyProducts

TUNGSIX drilling insert WWMU

GRDMFG Grade manufacturers designation

AH6030

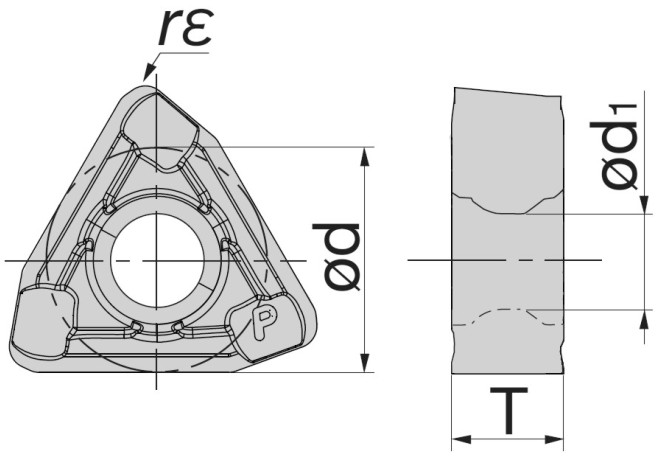

IC Inscribed circle diameter

11.3 mm

ID Technical product number

6993659

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-07 - Trigon insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

WW11X5123R

Name Identifying order number

WWMU11X512R-DS AH6030

RE Corner radius

1.2 mm

S Insert thickness

5.7 mm

S1 Insert thickness total

5.7 mm

STDDES Standard designation

WWMU11X512R

TCINS Tolerance class insert

Working process

BAB - Open by boring,BVB - Drilling
