Главная Каталог продукции Toolunited 16 201-07 - Trigon insert WPMT090725ZSR T1015

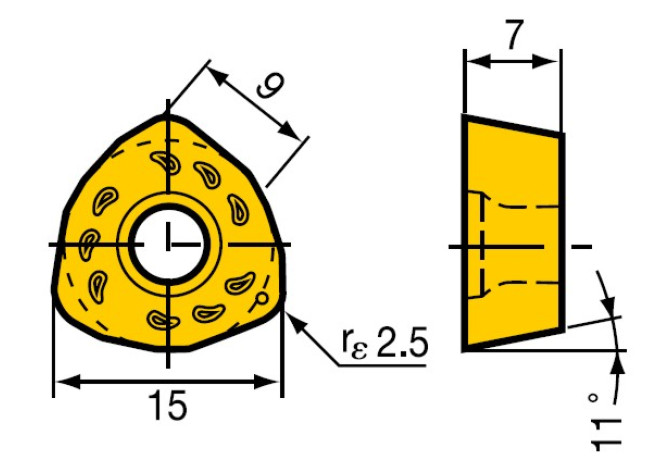

WPMT090725ZSR T1015

Артикул: WPMT090725ZSR T1015

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

11 Degree

CB Chip breaker face count

1 - With chip breaker one-side

COATN Coating / Покрытие

MT-CVD

COMPC Company code

TT - Tungaloy

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

2.5 mm

Delivery state valid from

10/26/2012

DIN

WP0907 3N

FamilyProducts

Wendeschneidplatte T3130 mit Schutzfase

GRDMFG Grade manufacturers designation

T1015

IC Inscribed circle diameter

15 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-07 - Trigon insert

L Cutting edge length

9 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

WP0907 3N

Name Identifying order number

WPMT090725ZSR T1015

S Insert thickness

7 mm

S1 Insert thickness total

7 mm

STDDES Standard designation

WPMT090725ZSR

TCINS Tolerance class insert

Working process

DDA - External turning
