Главная Каталог продукции Toolunited 16 201-07 - Trigon insert WPMT060304-MV VP45N

WPMT060304-MV VP45N

Артикул: WPMT060304-MV VP45N

В наличии

В корзину

Описание

Характеристики

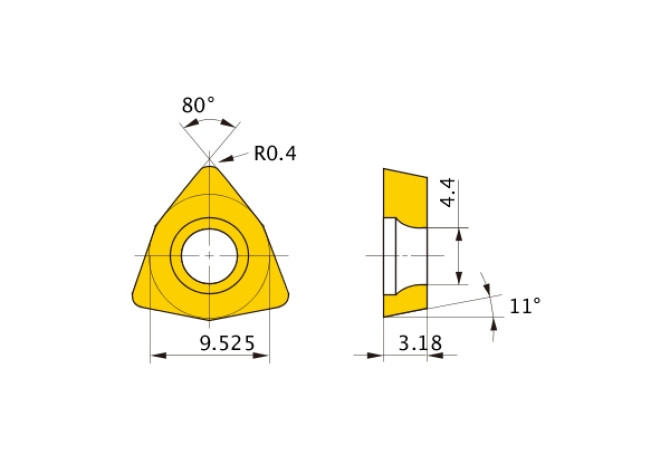

AN Clearance angle major

11 Degree

BN Face land width

0.2 mm

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

T - Chamfered

COATN Coating / Покрытие

VP-Miracle

COMPC Company code

MI - Mitsubishi Materials

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.4 mm

Delivery state valid from

4/1/2022

DIN

WP0603043N

EPSR Insert included angle

80 Degree

FamilyProducts

insert for turning WPMT-MV

GAN Insert rake angle

20 Degree

GB Face land angle

8 Degree

GRD2ND Standard designation of the grade 2nd application

HT-P25

GRD3RD Standard designation of the grade 3rd application

HT-P30

GRDMFG Grade manufacturers designation

VP45N

GRDPRIO Standard designation of the grade main application

HT-P20

IC Inscribed circle diameter

9.525 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-07 - Trigon insert

L Cutting edge length

6.51 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

WP0603043N

Name Identifying order number

WPMT060304-MV VP45N

RE Corner radius

0.4 mm

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

WPMT060304

STDDESAnsi Standard designation ANSI

WPMT321

TCINS Tolerance class insert

Working process

DDA - External turning,DDI - Internal turning
